Solar Sensor, HVAC
Solar Sensor, HVAC

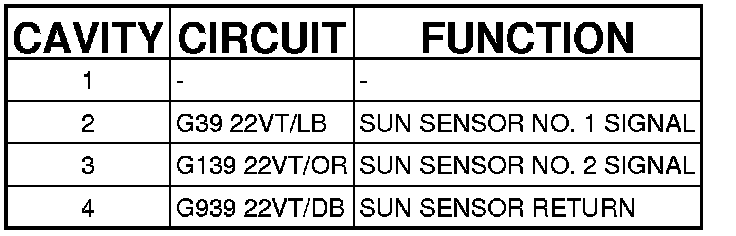

Connector - (INSTRUMENT PANEL) 4 WAY
SENSOR-SUN - (INSTRUMENT PANEL) 4 WAY
