Right Rear Seat Back Heater (Rear Heated Seats) (Component Side) 2 Way

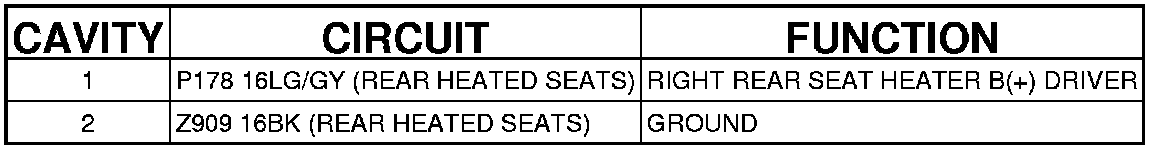

Connector (REAR HEATED SEATS) - (COMPONENT SIDE) 2 WAY

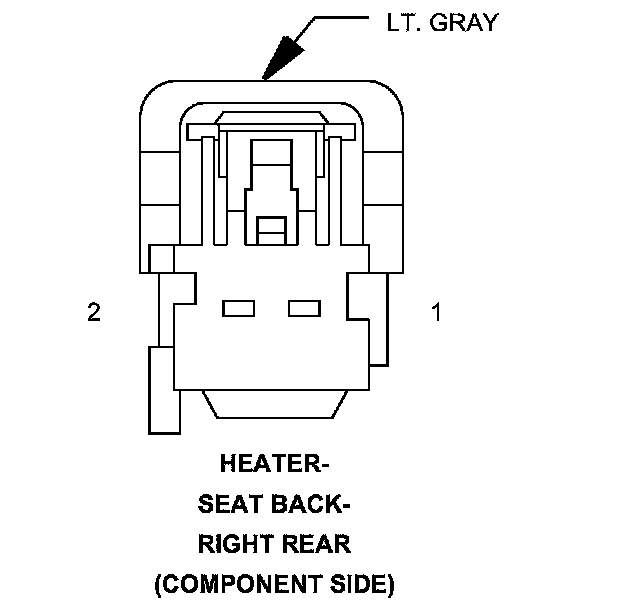

HEATER-SEAT BACK-RIGHT REAR (REAR HEATED SEATS) - (COMPONENT SIDE) 2 WAY
