Rain Sensor
Rain Sensor

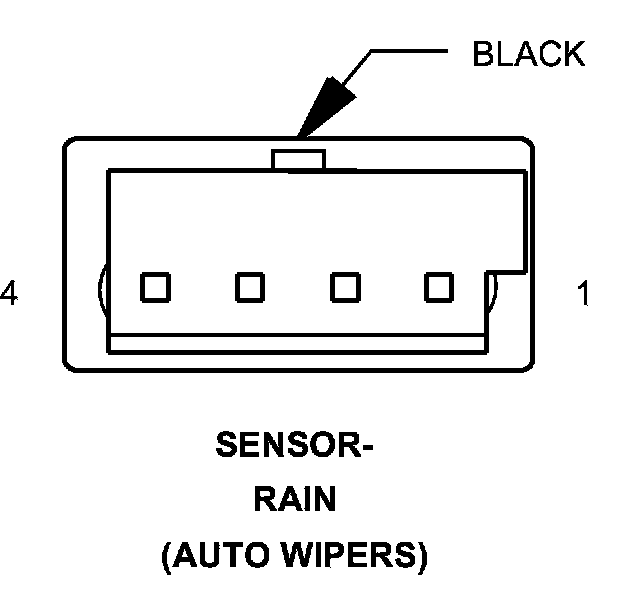

Connector (AUTO WIPERS) - (OVERHEAD) 4 WAY

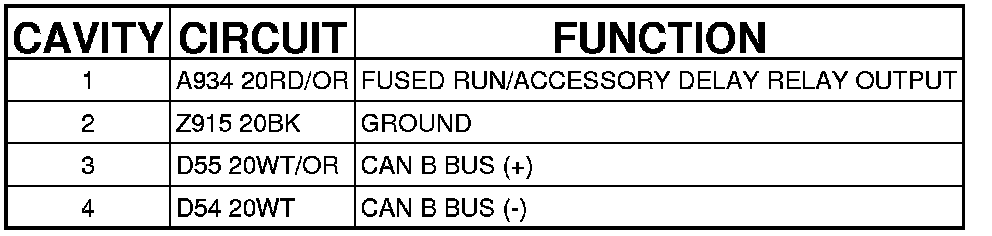

SENSOR-RAIN (AUTO WIPERS) - (OVERHEAD) 4 WAY
