Jeep Truck
>>
2009
>>
Commander 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
Remote Switch, Audio - Stereo
>>
Right Steering Wheel Switch (Steering Wheel) 10 Way

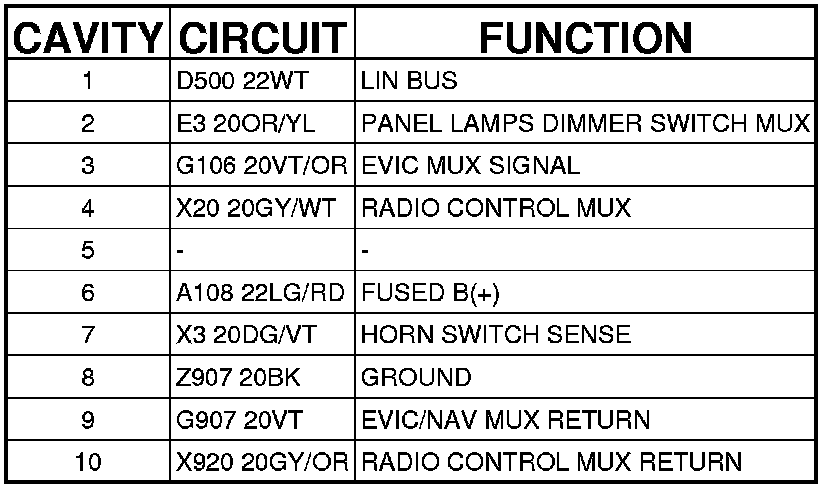

Right Steering Wheel Switch (Steering Wheel) 10 Way

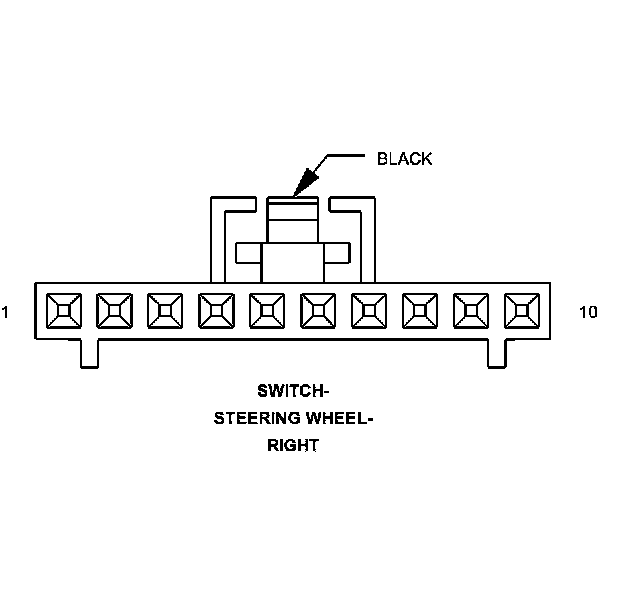

Connector - (STEERING WHEEL) 10 WAY
SWITCH-STEERING WHEEL-RIGHT - (STEERING WHEEL) 10 WAY
