Left Steering Wheel Switch (Steering Wheel) 4 Way

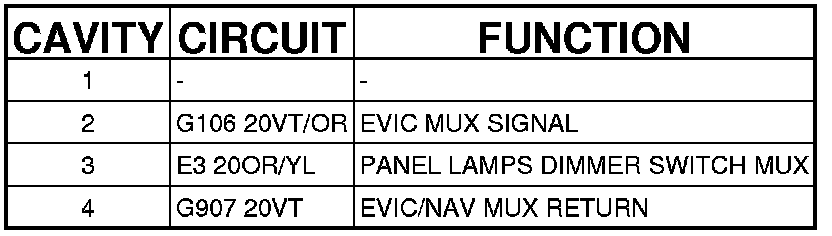

Connector - (STEERING WHEEL) 4 WAY

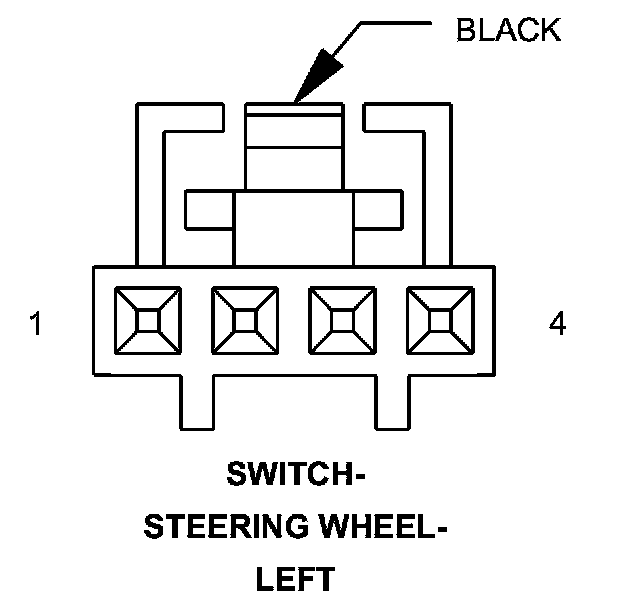

SWITCH-STEERING WHEEL-LEFT - (STEERING WHEEL) 4 WAY
