Radiator Cooling Fan Motor Relay
>>
Radiator Fan Low Speed Relay (In IPM)
Radiator Fan Low Speed Relay (In IPM)

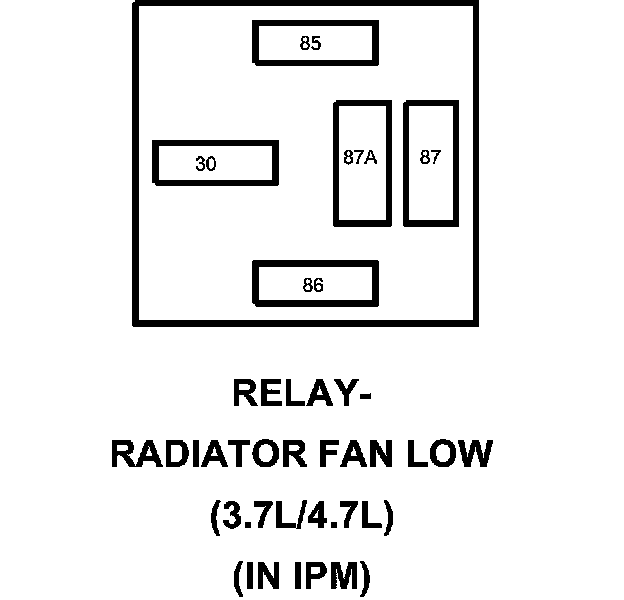

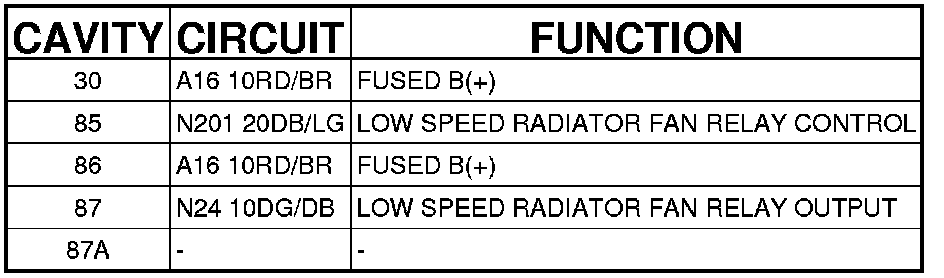

Connector (3.7L/4.7L) - (IN IPM)
RELAY-RADIATOR FAN LOW (3.7L/4.7L) - (IN IPM)
