Power Liftgate Latch (Liftgate) 8 Way

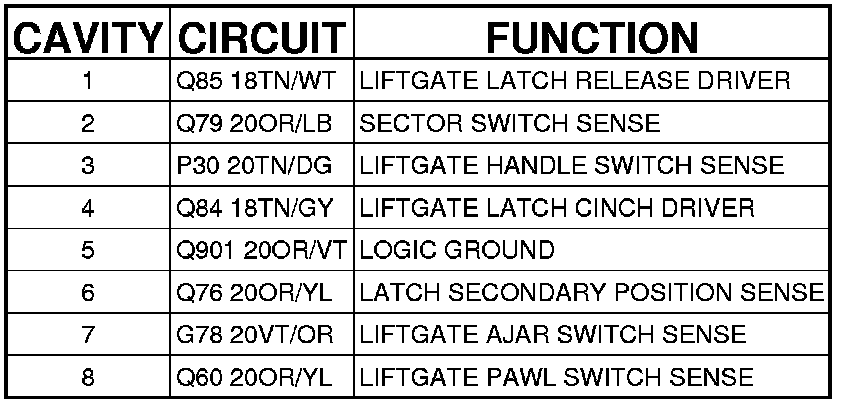

Connector - (LIFTGATE) 8 WAY

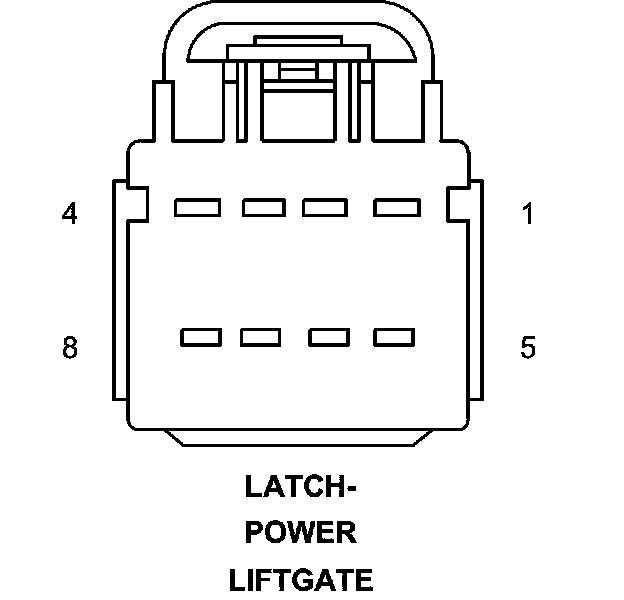

LATCH-POWER LIFTGATE - (LIFTGATE) 8 WAY
