Right Liftgate Pinch Sensor (Power Liftgate) (Liftgate) 2 Way

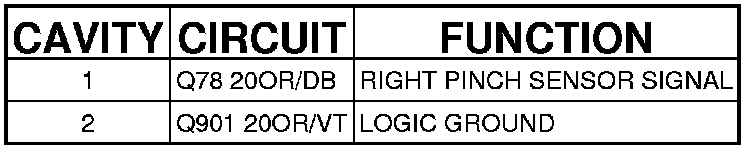

Connector (POWER LIFTGATE) - (LIFTGATE) 2 WAY

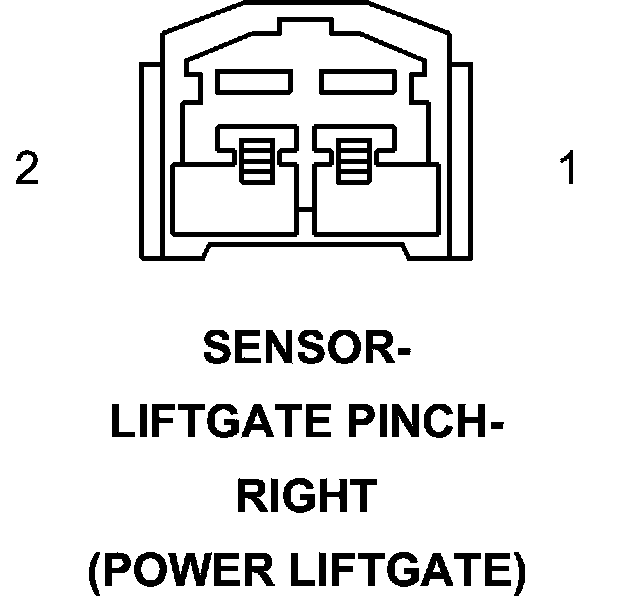

SENSOR-LIFTGATE PINCH-RIGHT (POWER LIFTGATE) - (LIFTGATE) 2 WAY
