Passenger Window/Door Lock Switch (Passenger Door Jumper) 6 Way

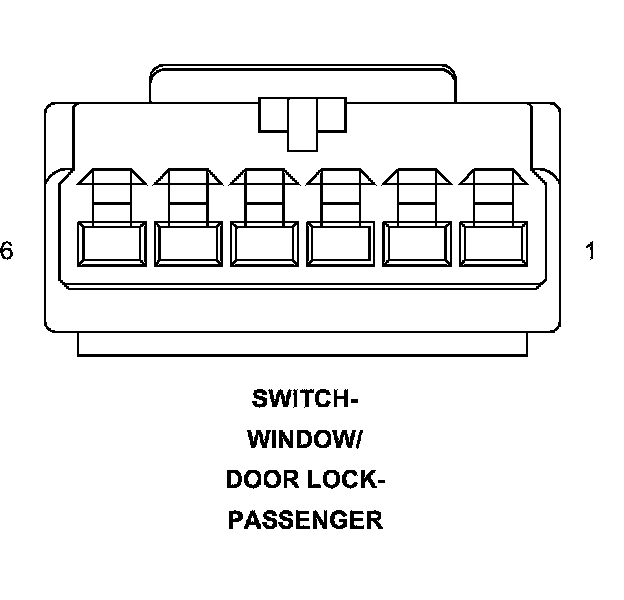

Connector - (PASSENGER DOOR JUMPER) 6 WAY

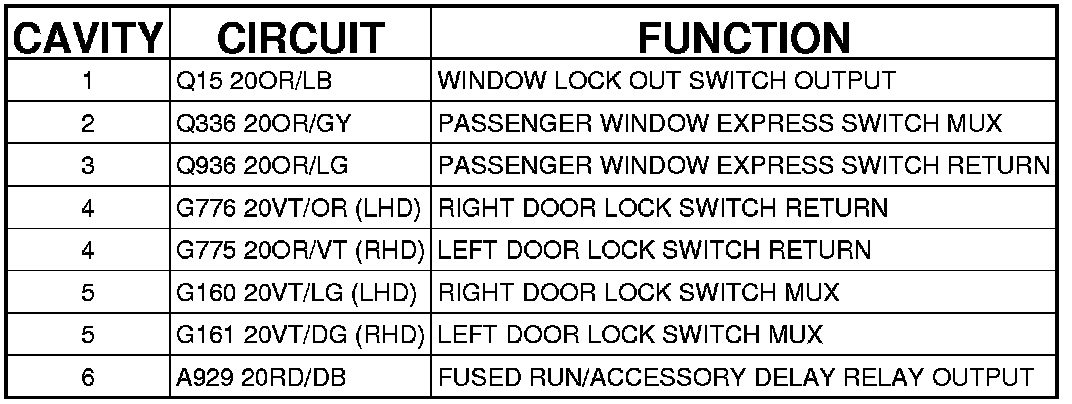

SWITCH-WINDOW/DOOR LOCK-PASSENGER - (PASSENGER DOOR JUMPER) 6 WAY
