Jeep Truck
>>
2009
>>
Commander 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Relay
>>
Flip-Up Glass Relay (In JB)
Flip-Up Glass Relay (In JB)

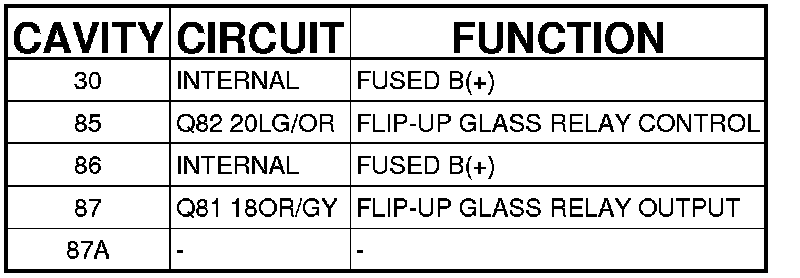

Connector - (IN JB)

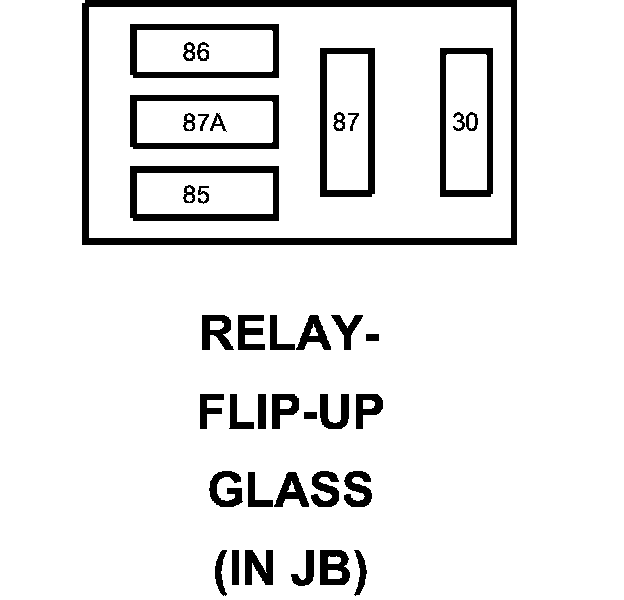

RELAY-FLIP-UP GLASS - (IN JB)
