Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Oxygen Sensor >> Left Rear Oxygen Sensor (Injector) 4 Way

Left Rear Oxygen Sensor (Injector) 4 Way

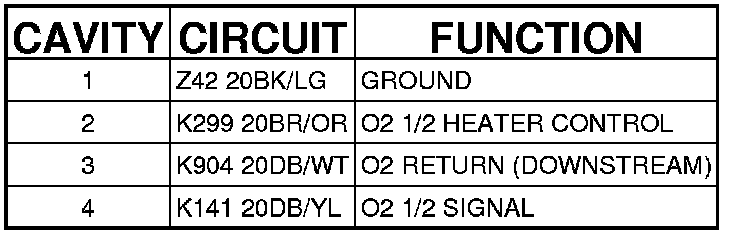

Connector (GAS) - (INJECTOR) 4 WAY

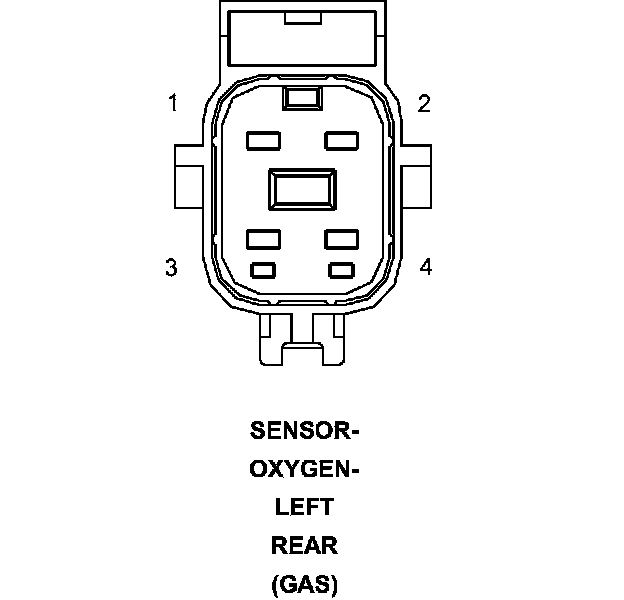

SENSOR-OXYGEN-LEFT REAR (GAS) - (INJECTOR) 4 WAY
