Jeep Truck
>>
2009
>>
Commander 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

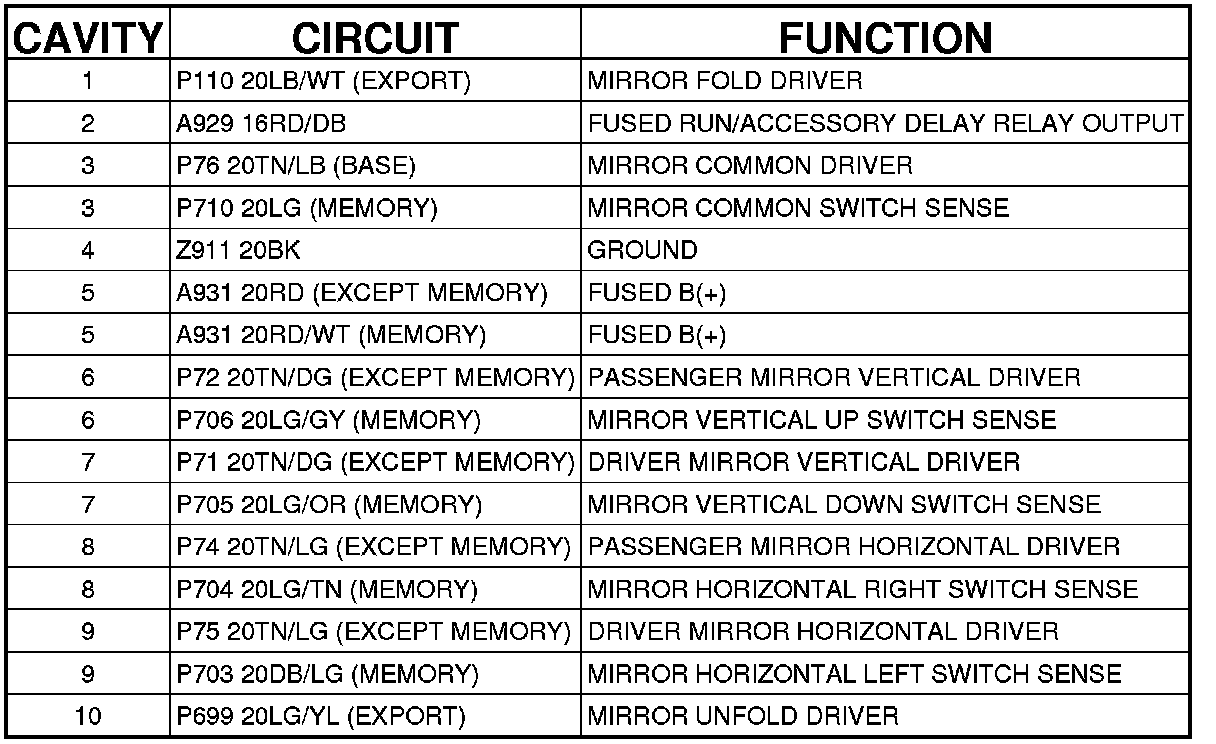

Connector - (DRIVER DOOR JUMPER) 10 WAY

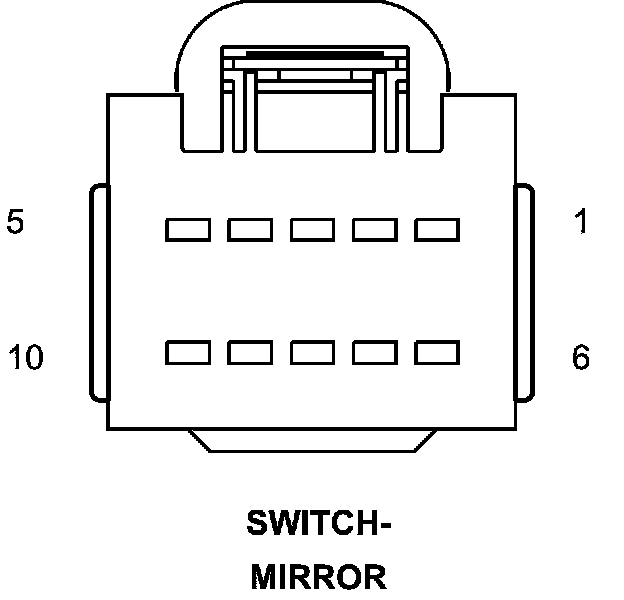

SWITCH-MIRROR - (DRIVER DOOR JUMPER) 10 WAY
