Memory Seat Module C1 (Driver Seat) 14 Way
Memory Seat Module C1 (Driver Seat) 14 Way

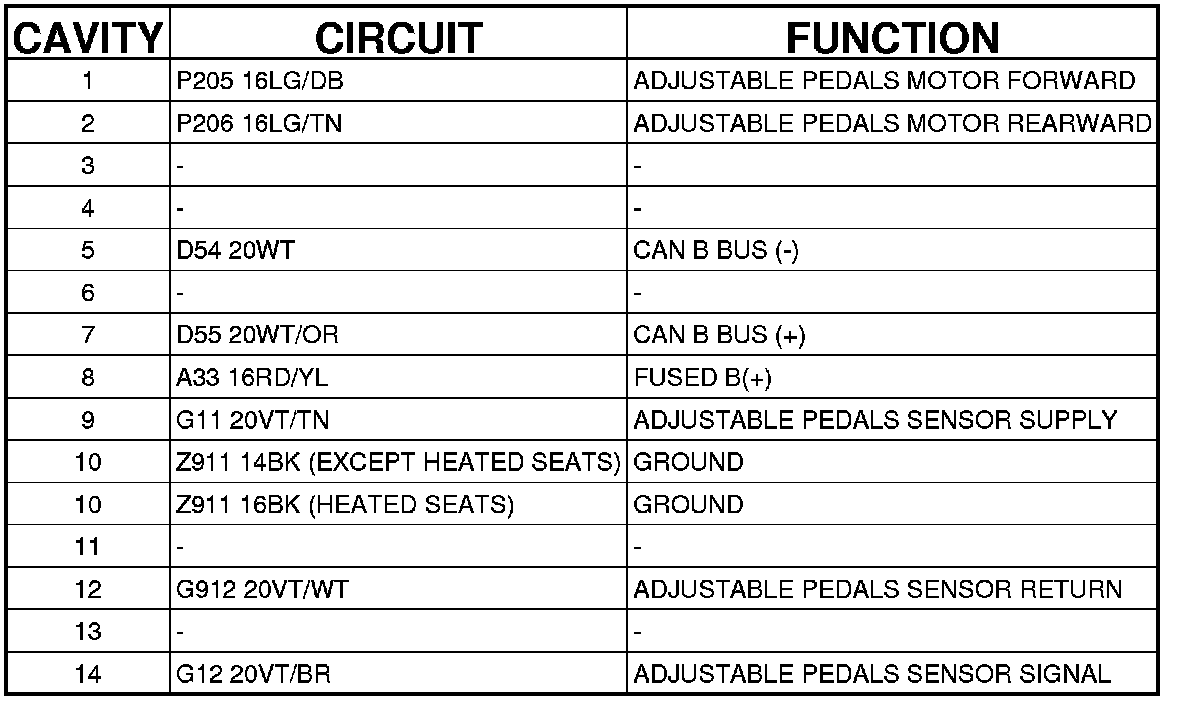

Connector C1 - (DRIVER SEAT) 14 WAY

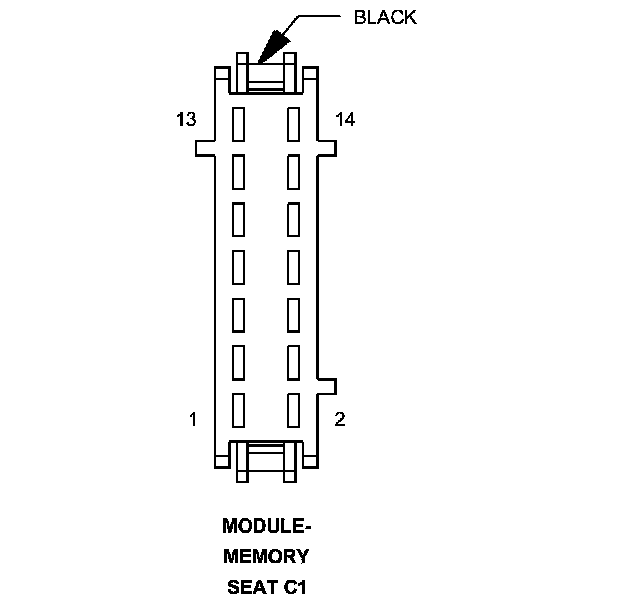

MODULE-MEMORY SEAT - (DRIVER SEAT) 14 WAY
