License Plate Lamp (Base) (Liftgate) 4 Way

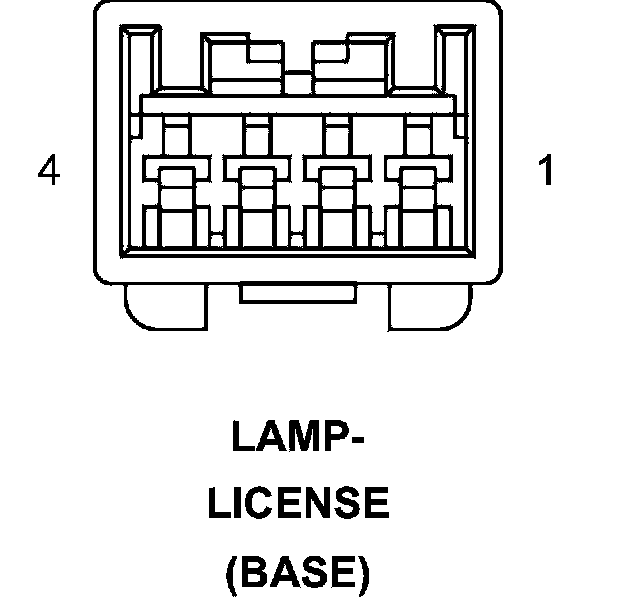

Connector (BASE) - (LIFTGATE) 4 WAY

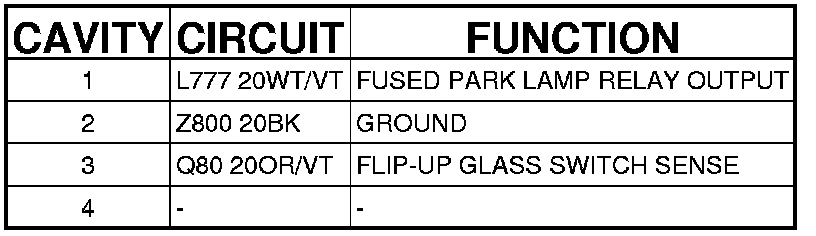

LAMP-LICENSE (BASE) - (LIFTGATE) 4 WAY
