Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> System Diagram >> Right HID Headlamp (HID) (Headlamp And Dash Side) 14 Way

Right HID Headlamp (HID) (Headlamp And Dash Side) 14 Way

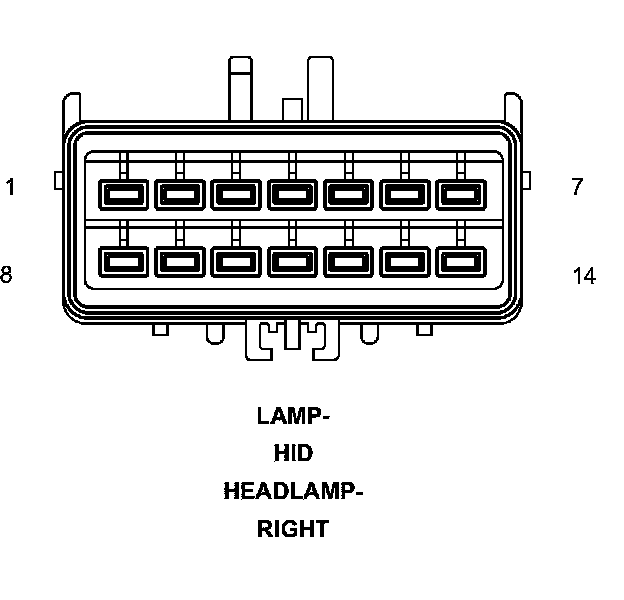

Connector (HID) - (HEADLAMP AND DASH SIDE) 14 WAY

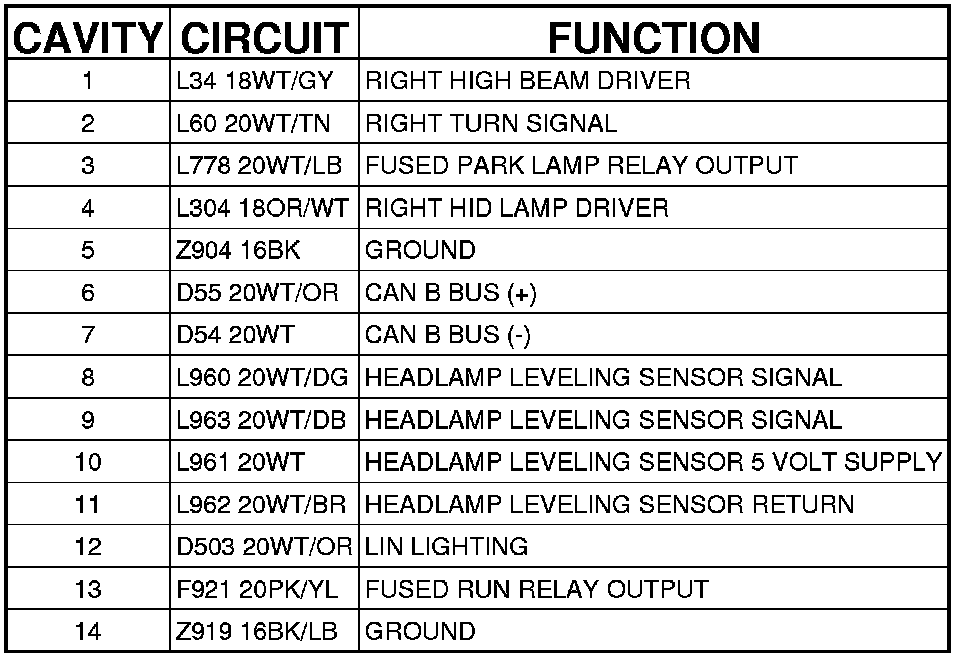

LAMP-HID HEADLAMP-RIGHT (HID) - (HEADLAMP AND DASH SIDE) 14 WAY
