Left Headlamp (Headlamp And Dash) 6 Way

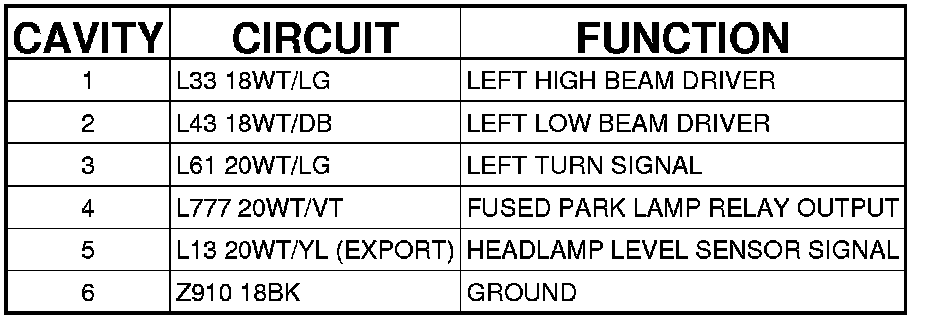

Connector - (HEADLAMP AND DASH) 6 WAY

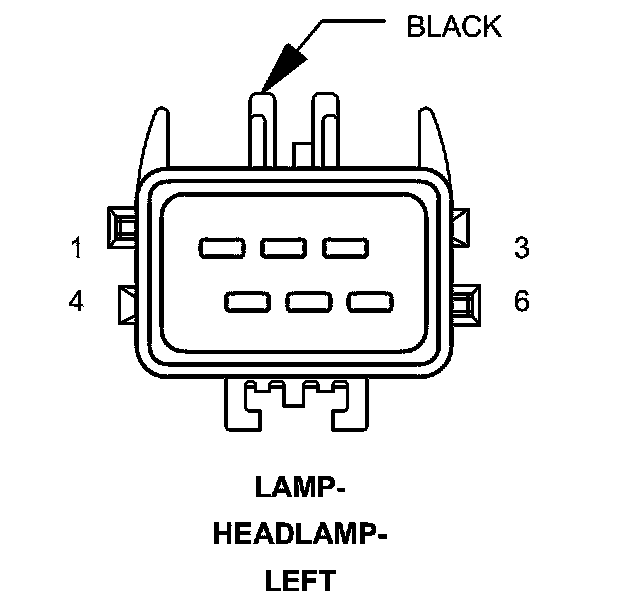

LAMP-HEADLAMP-LEFT - (HEADLAMP AND DASH) 6 WAY
