Rear Headlamp Level Sensor (Headlamp And Dash) 6 Way

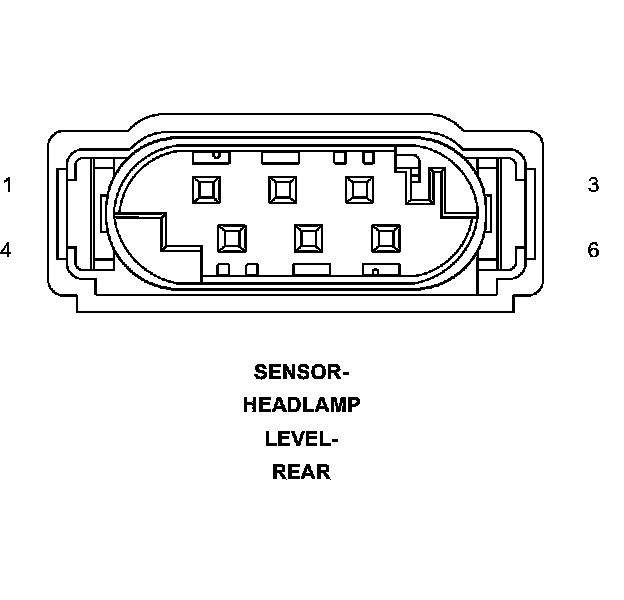

Connector - (HEADLAMP AND DASH) 6 WAY

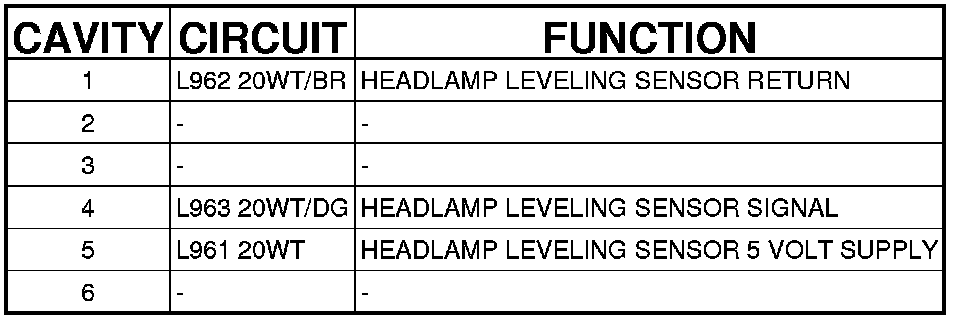

SENSOR-HEADLAMP LEVEL-REAR - (HEADLAMP AND DASH) 6 WAY
