Driver/Vehicle Information Display

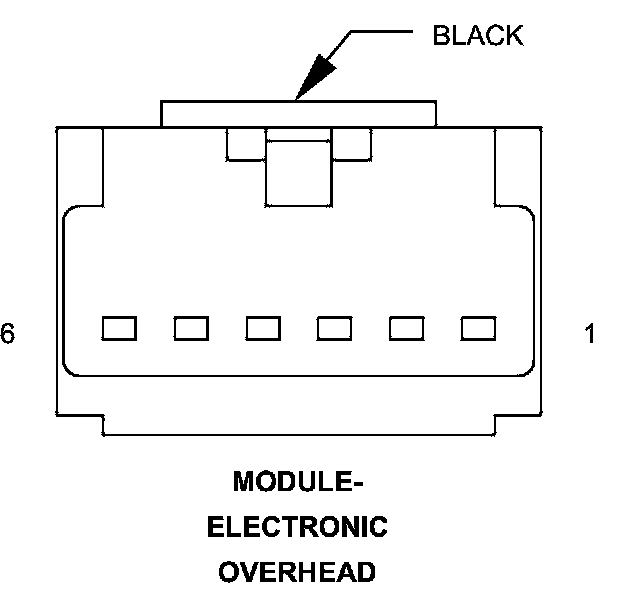

Connector - (OVERHEAD) 6 WAY

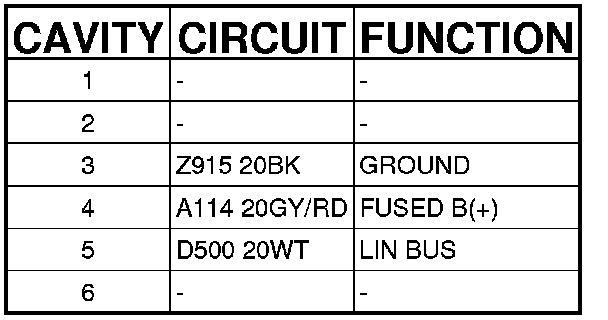

MODULE-ELECTRONIC OVERHEAD - (OVERHEAD) 6 WAY
