Jeep Truck
>>
2009
>>
Commander 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Rear A/C-Heater Control C1 (HVAC) 8 Way
Rear A/C-Heater Control C1 (HVAC) 8 Way

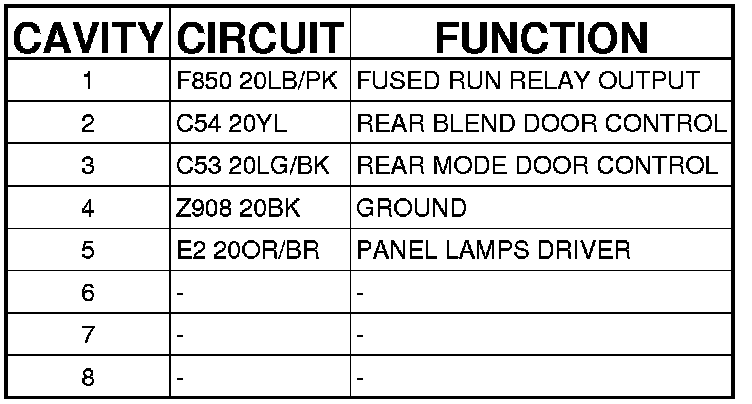

Connector C1 - (HVAC) 8 WAY

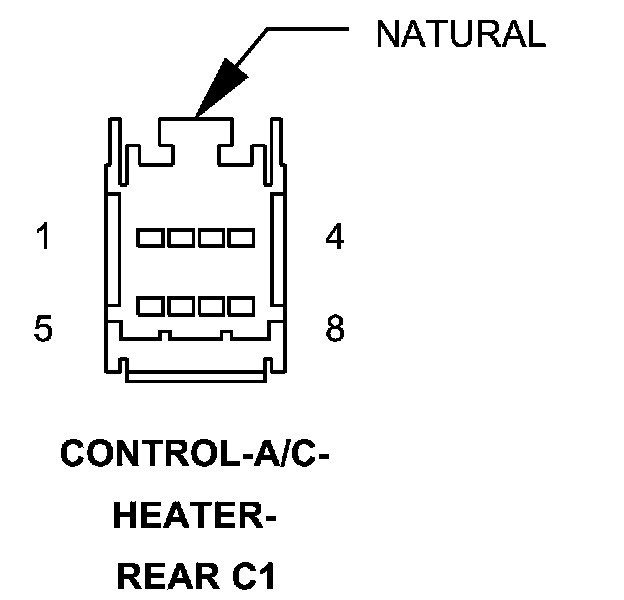

CONTROL-A/C-HEATER-REAR - (HVAC) 8 WAY
