A/C-Heater Control C2 (ATC) (HVAC) 16 Way
A/C-Heater Control C2 (ATC) (HVAC) 16 Way

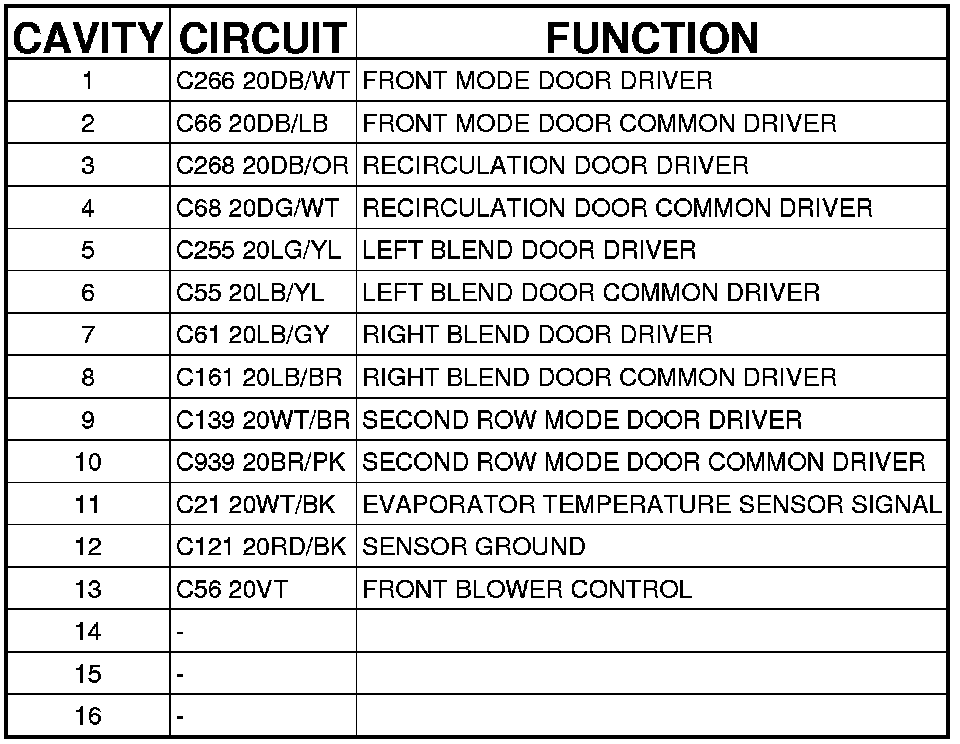

Connector C2 (ATC) - (HVAC) 16 WAY

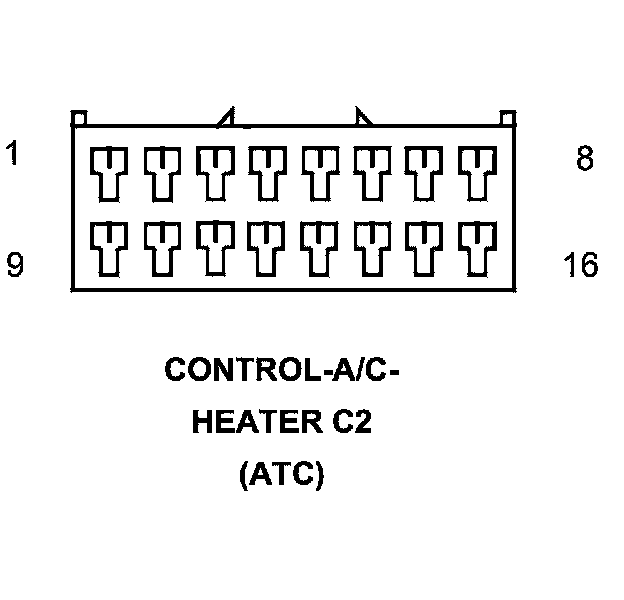

CONTROL-A/C-HEATER (ATC) - (HVAC) 16 WAY
