A/C-Heater Control C1 (ATC) (HVAC) 22 Way
A/C-Heater Control C1 (ATC) (HVAC) 22 Way

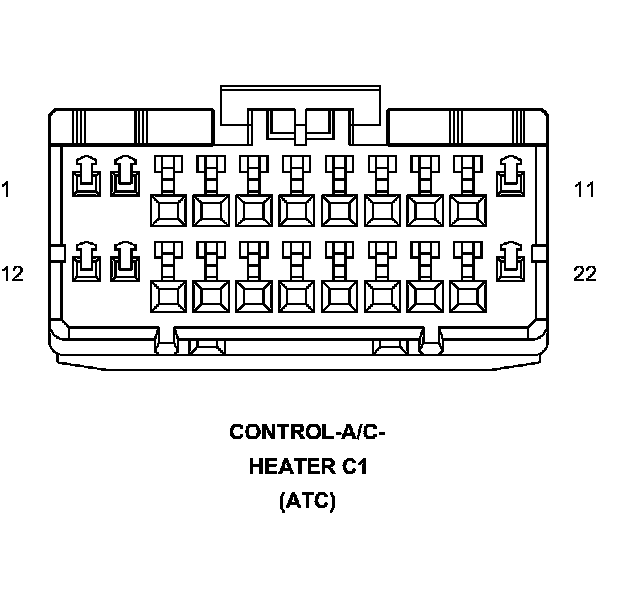

Connector C1 (ATC) - (HVAC) 22 WAY

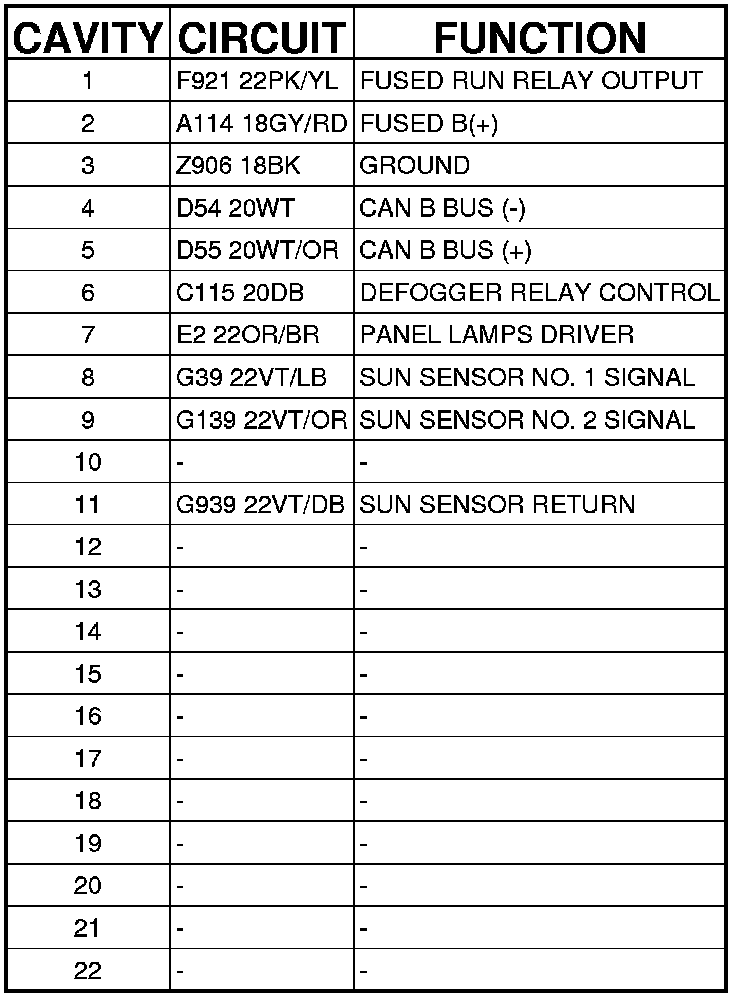

CONTROL-A/C-HEATER (ATC) - (HVAC) 22 WAY
