Park Assist Module C1 (Except SRT) (Underbody) 12 Way

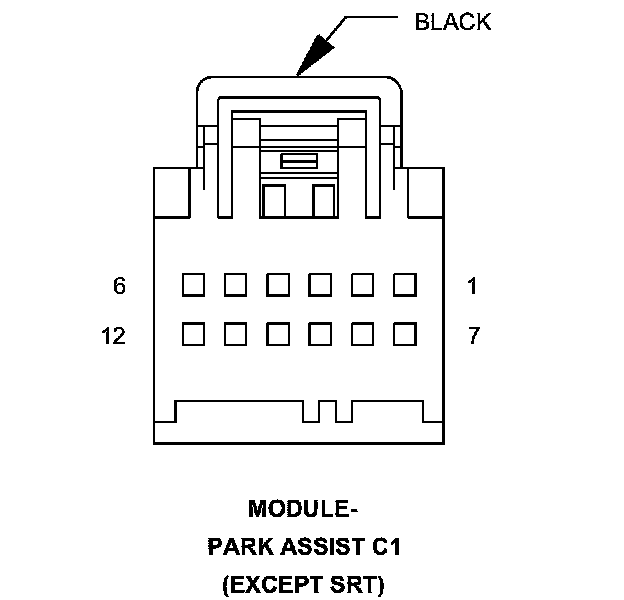

Connector C1 (EXCEPT SRT) - (UNDERBODY) 12 WAY

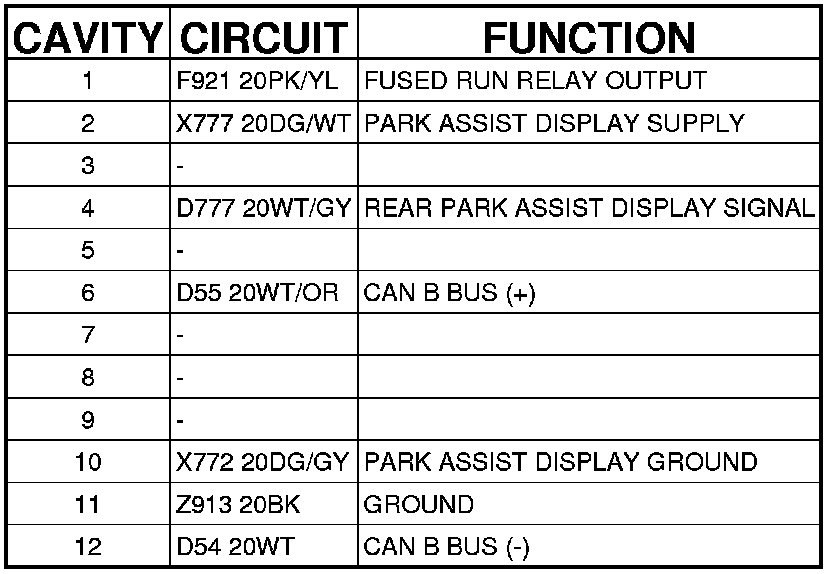

MODULE-PARK ASSIST (EXCEPT SRT) - (UNDERBODY) 12 WAY
