C328 (Rear HVAC) (Body Side) 6 Way
C328 (Rear HVAC) (Body Side) 6 Way

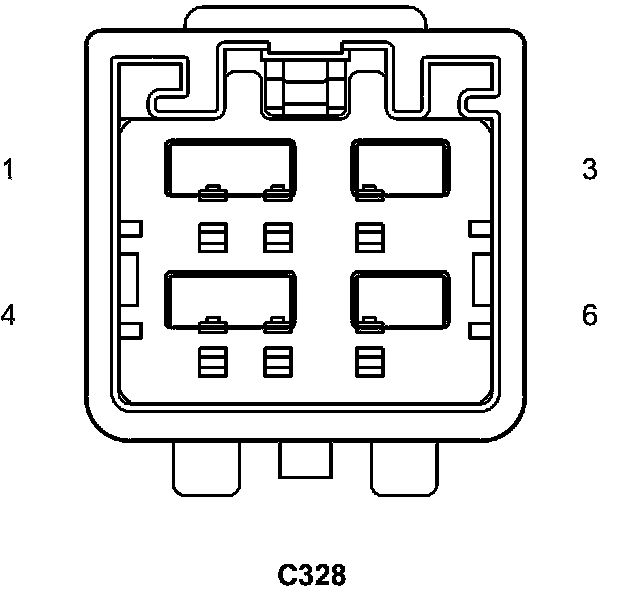

Connector (REAR HVAC) - (BODY SIDE) 6 WAY

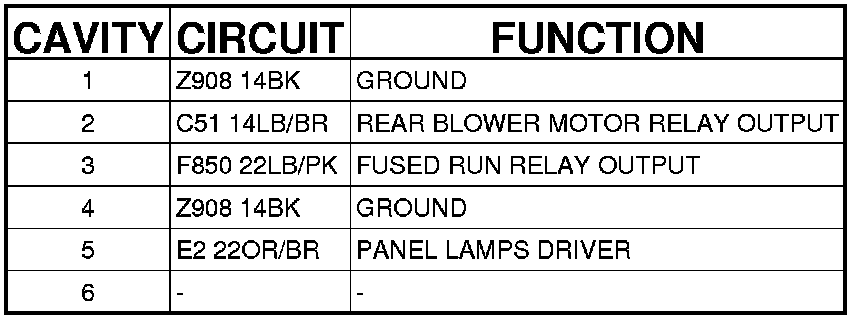

C328 (REAR HVAC) - (BODY SIDE) 6 WAY
