C327 (Liftgate Jumper Side) 20 Way

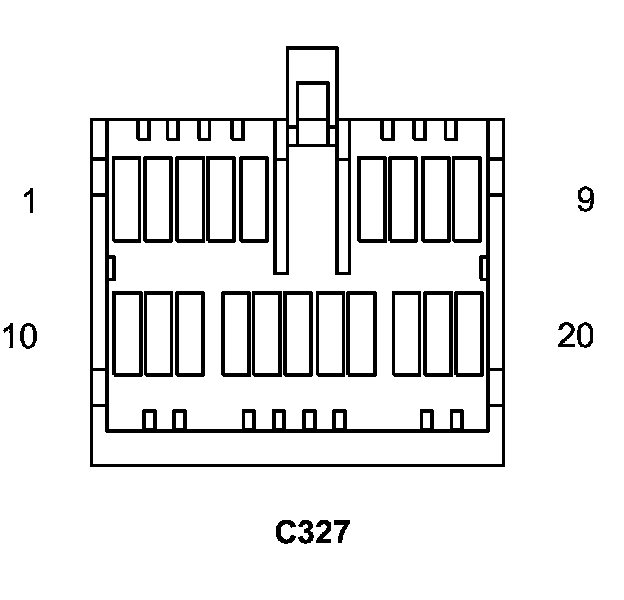

Connector - (LIFTGATE JUMPER SIDE) 20 WAY

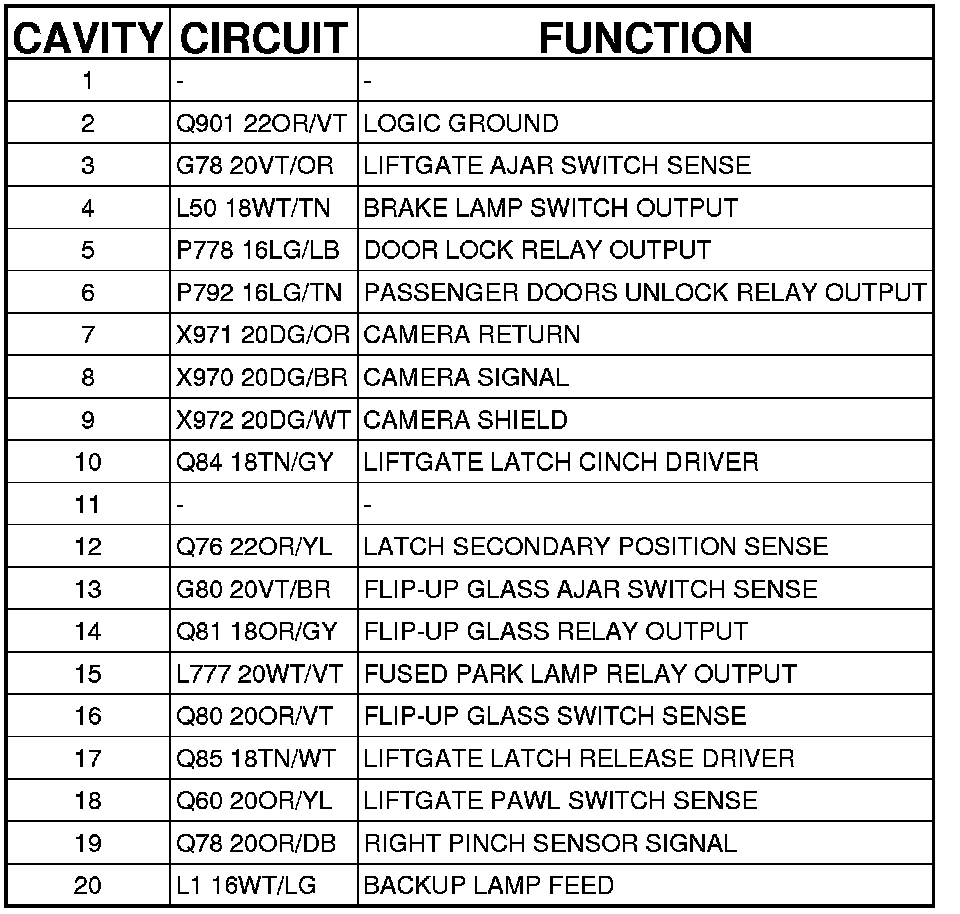

C327 - (LIFTGATE JUMPER SIDE) 20 WAY
