C321 (Driver Seat Jumper Side) 4 Way
C321 (Driver Seat Jumper Side) 4 Way

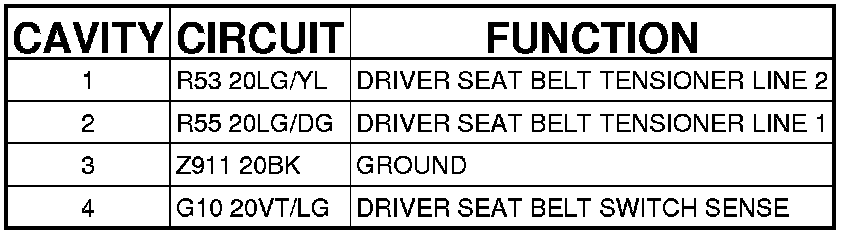

Connector - (DRIVER SEAT JUMPER SIDE) 4 WAY

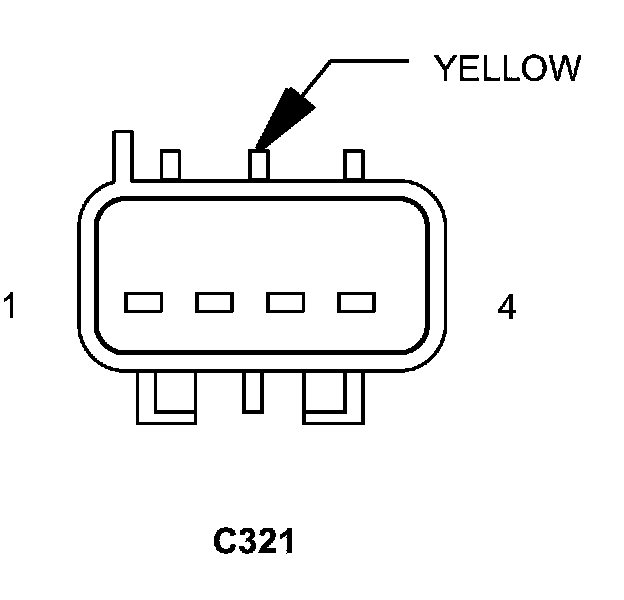

C321 - (DRIVER SEAT JUMPER SIDE) 4 WAY
