Jeep Truck
>>
2009
>>
Commander 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C300 - C399
>>

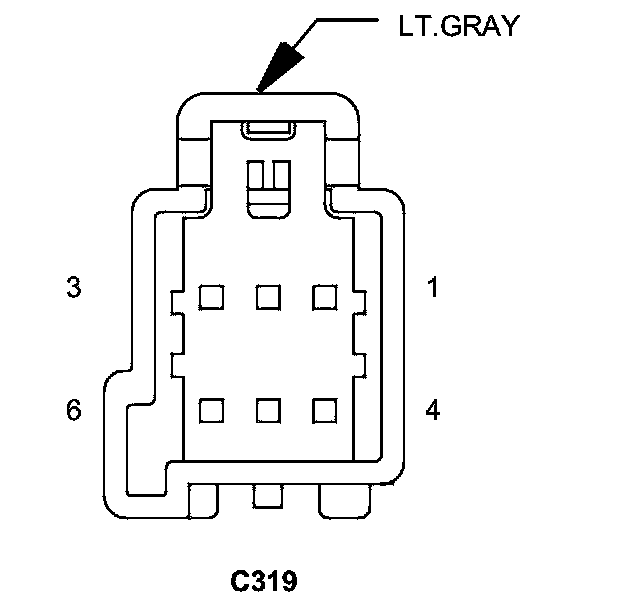

C319 (Passenger Seat) 6 Way
C319 (Passenger Seat) 6 Way

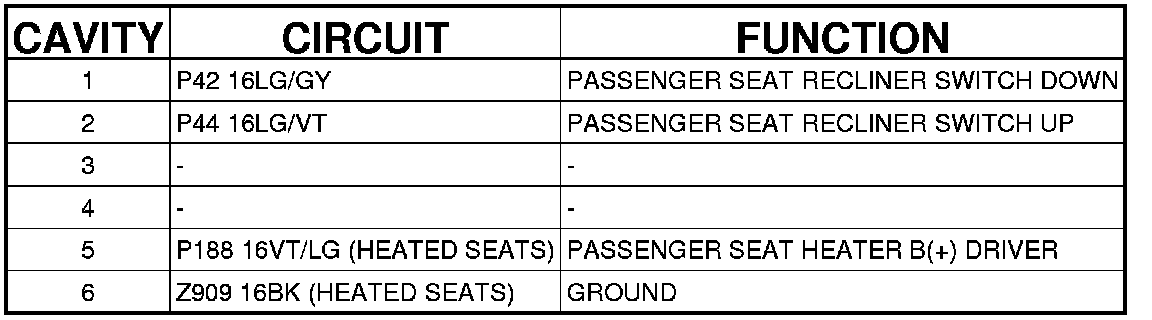

Connector - (PASSENGER SEAT) 6 WAY
C319 - (PASSENGER SEAT) 6 WAY
