Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C318 (Driver Seat) 6 Way

C318 (Driver Seat) 6 Way

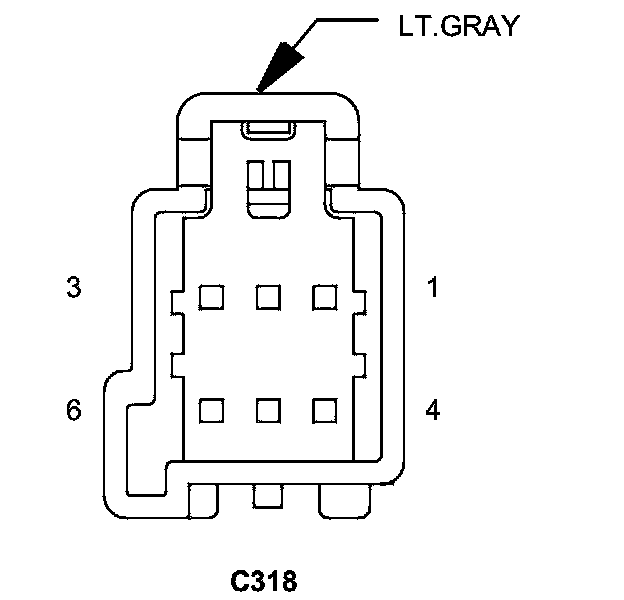

Connector - (DRIVER SEAT) 6 WAY

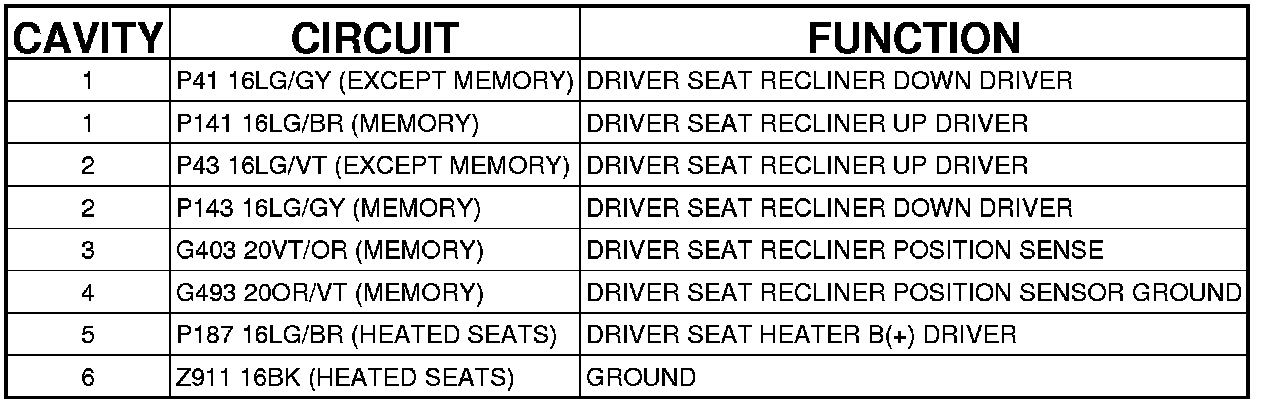

C318 - (DRIVER SEAT) 6 WAY
