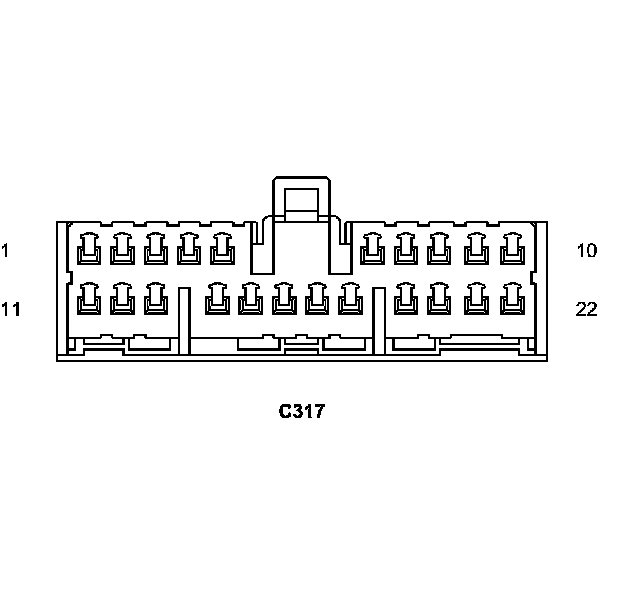

C317 (Passenger Door Side) 22 Way






Connector - (PASSENGER DOOR SIDE) 22 WAY

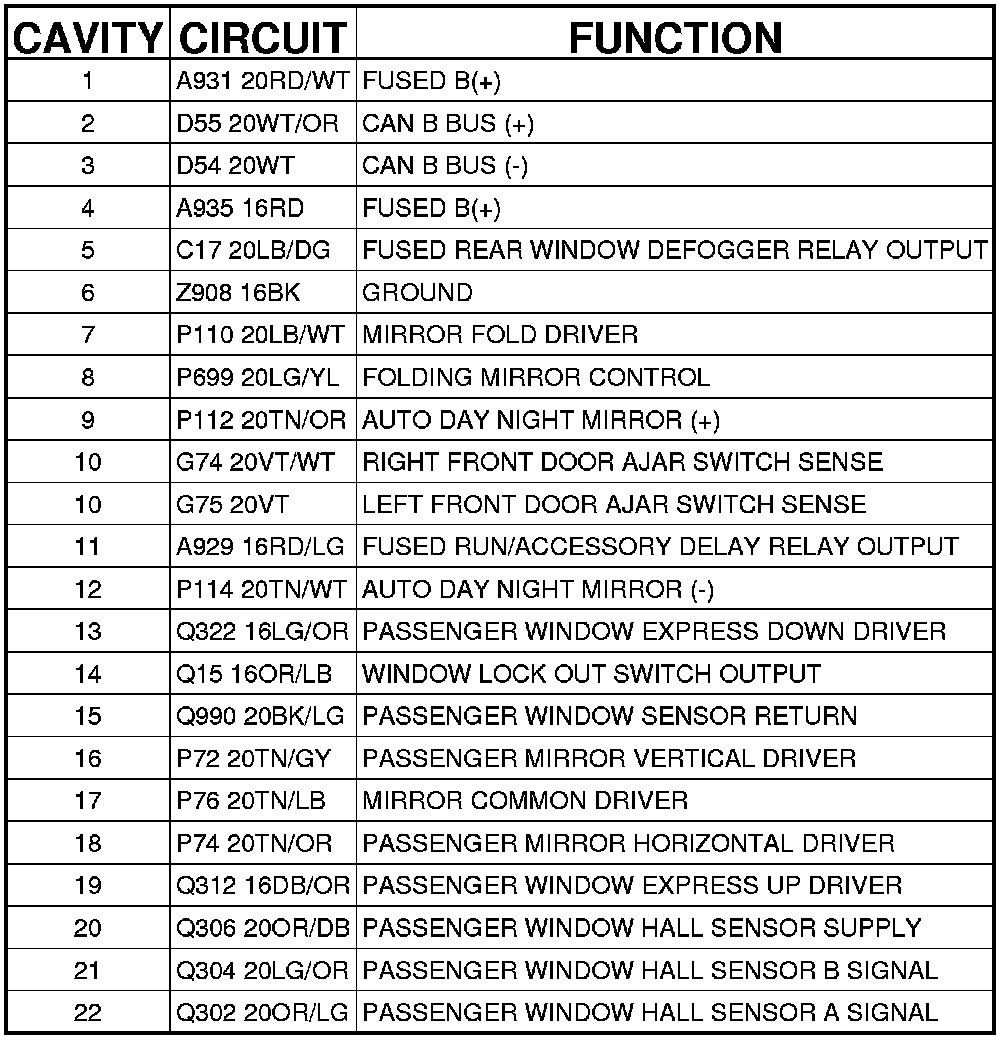

C317 - (PASSENGER DOOR SIDE) 22 WAY
