C315 (Driver Door Jumper Side) 12 Way
C315 (Driver Door Jumper Side) 12 Way

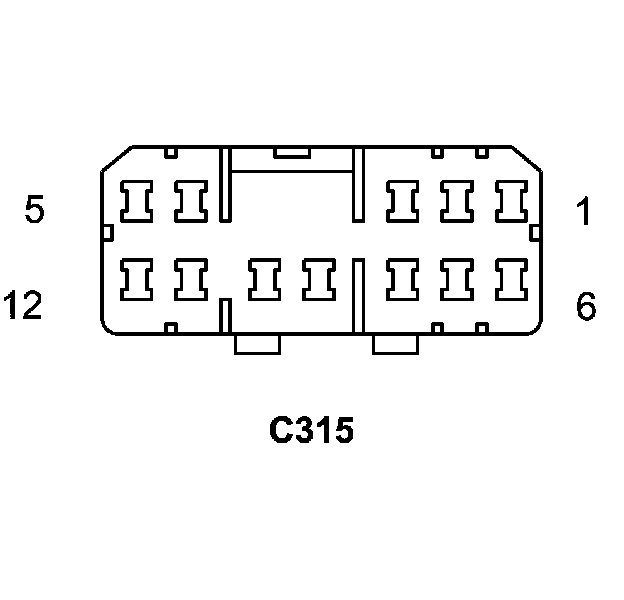

Connector - (DRIVER DOOR JUMPER SIDE) 12 WAY

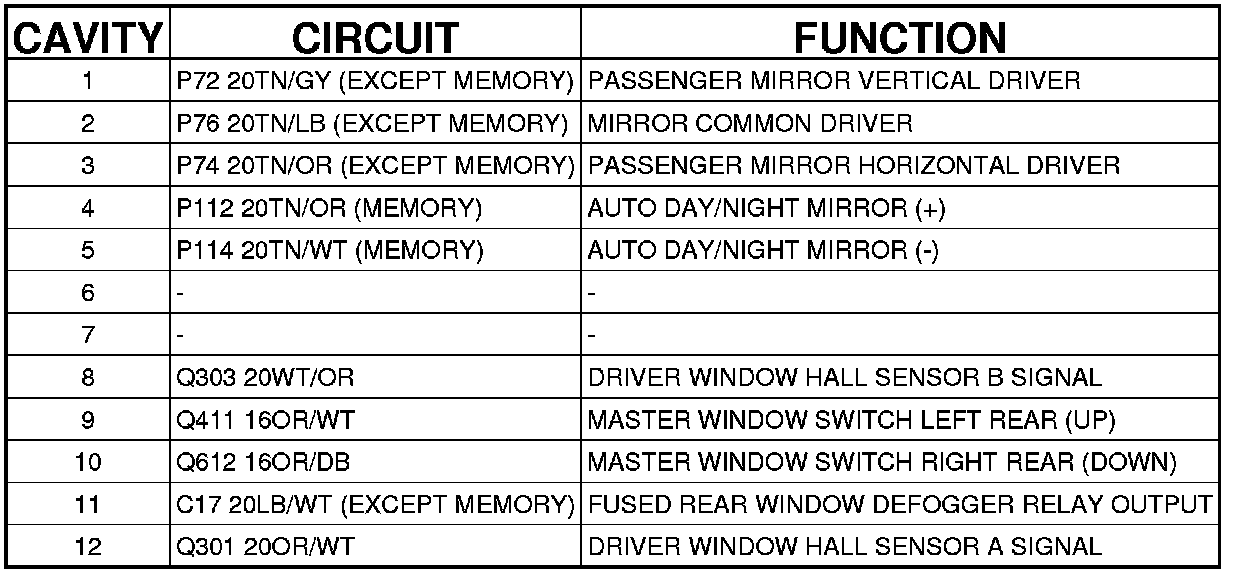

C315 - (DRIVER DOOR JUMPER SIDE) 12 WAY
