C302 (Passenger Door Side) 20 Way
C302 (Passenger Door Side) 20 Way

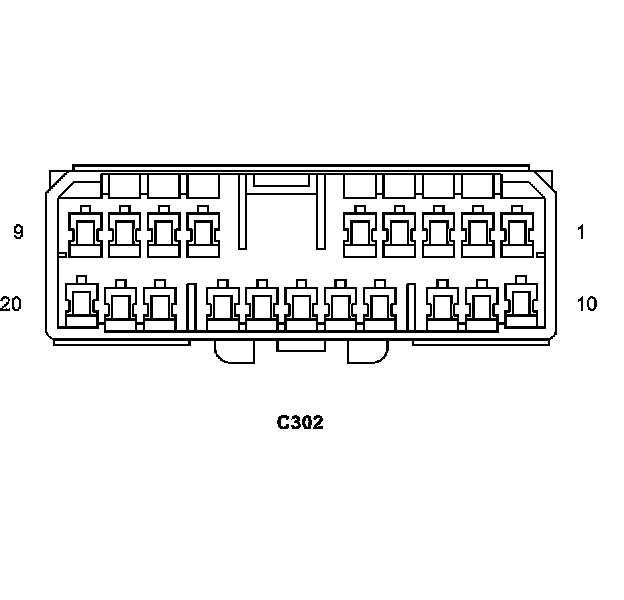

Connector - (PASSENGER DOOR SIDE) 20 WAY

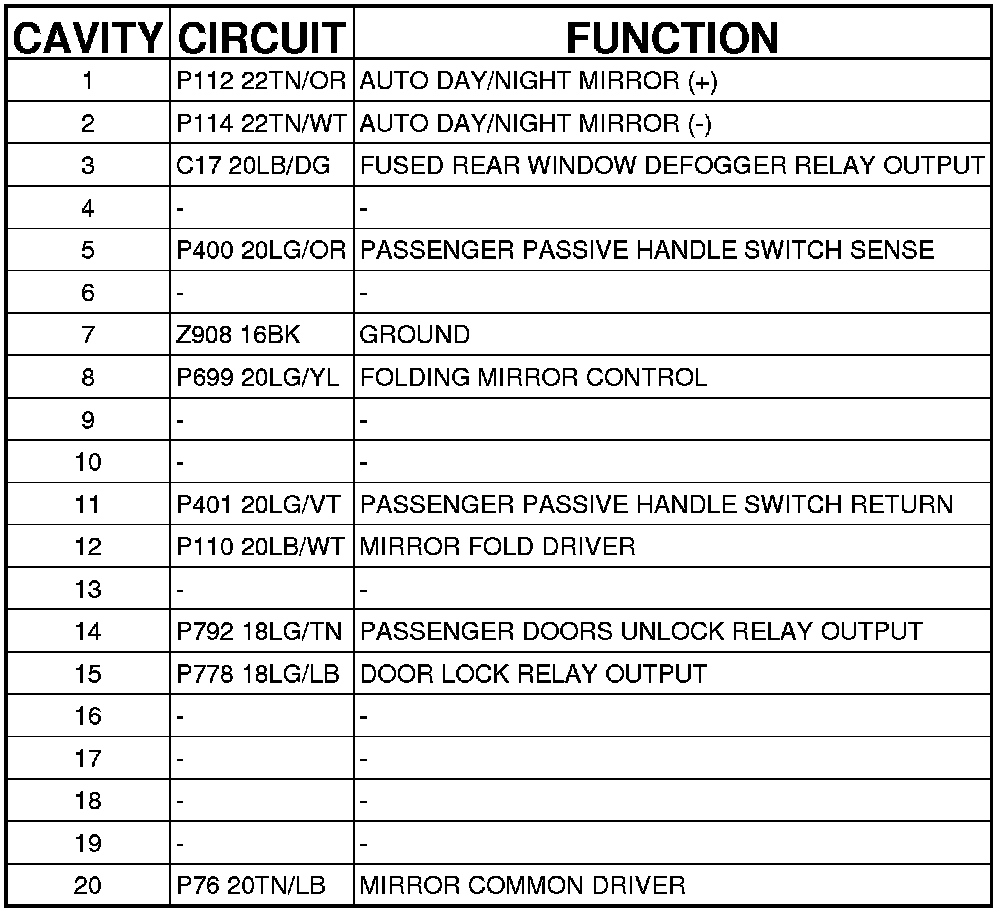

C302 - (PASSENGER DOOR SIDE) 20 WAY
