Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C302 (Body Side) 20 Way

C302 (Body Side) 20 Way

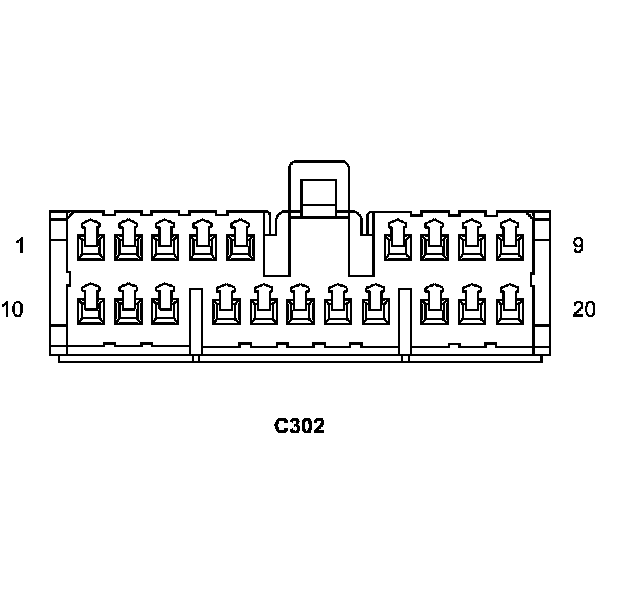

Connector - (BODY SIDE) 20 WAY

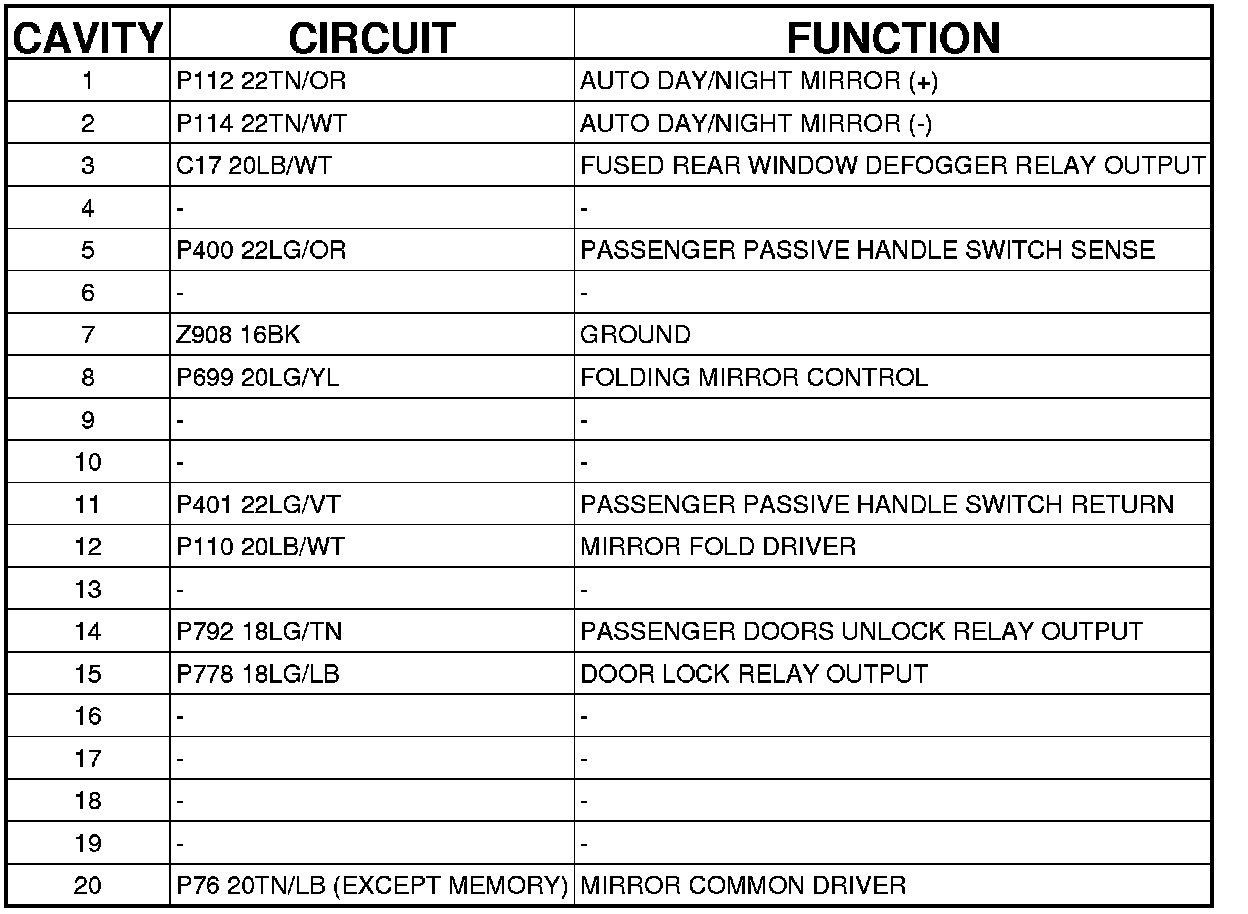

C302 - (BODY SIDE) 20 WAY
