C205 (Instrument Panel Side) 2 Way

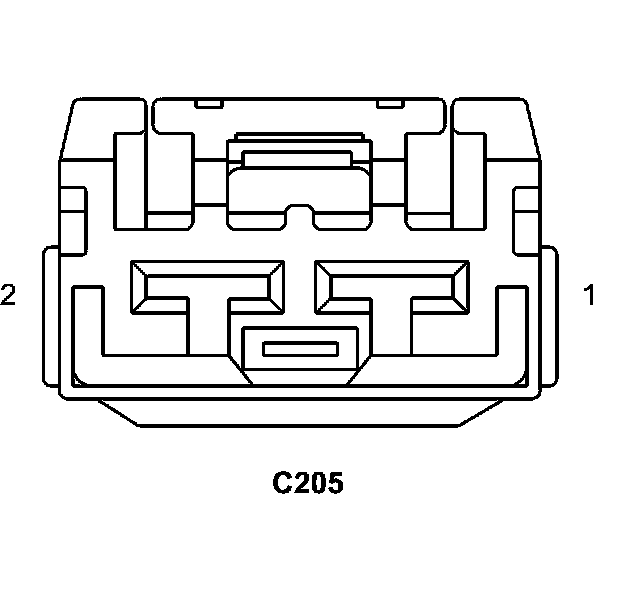

Connector - (INSTRUMENT PANEL SIDE) 2 WAY

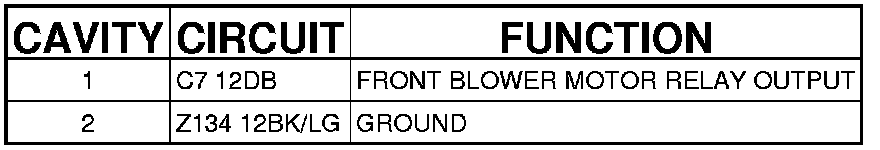

C205 - (INSTRUMENT PANEL SIDE) 2 WAY
