C203 (Hands Free) (Aux. Audio 2) 8 Way
C203 (Hands Free) (Aux. Audio 2) 8 Way

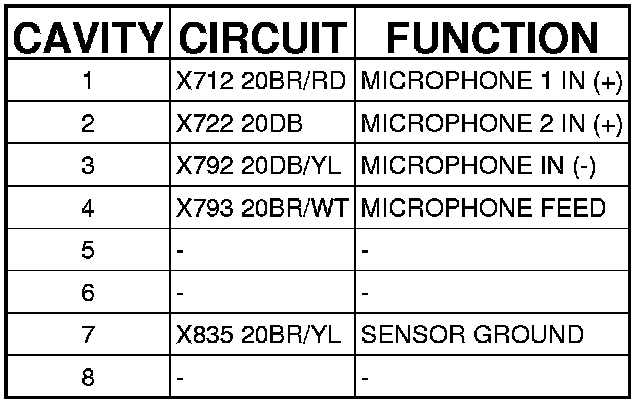

Connector (HANDS FREE) - (AUDIO-AUX-2) 8 WAY

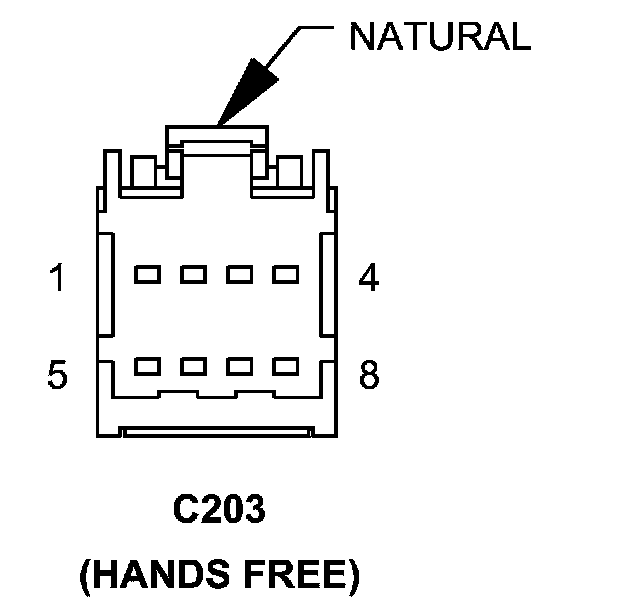

C203 (HANDS FREE) - (AUDIO-AUX-2) 8 WAY
