C106 (Except Export) (Headlamp And Dash Side) 20 Way

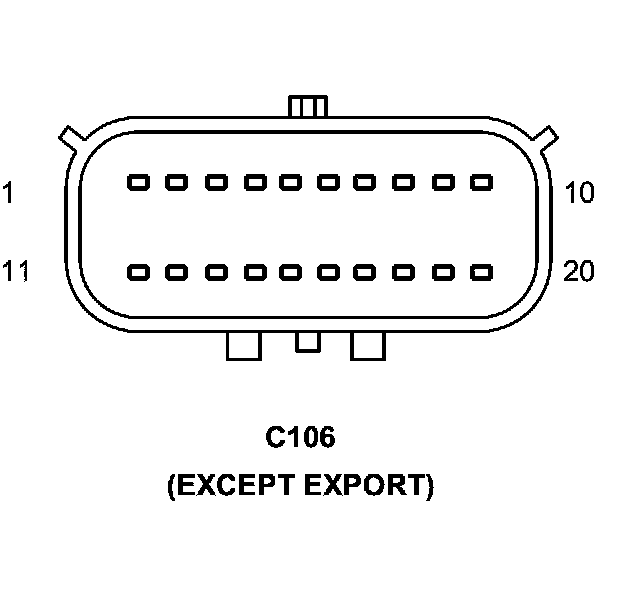

Connector (EXCEPT EXPORT) - (HEADLAMP AND DASH SIDE) 20 WAY

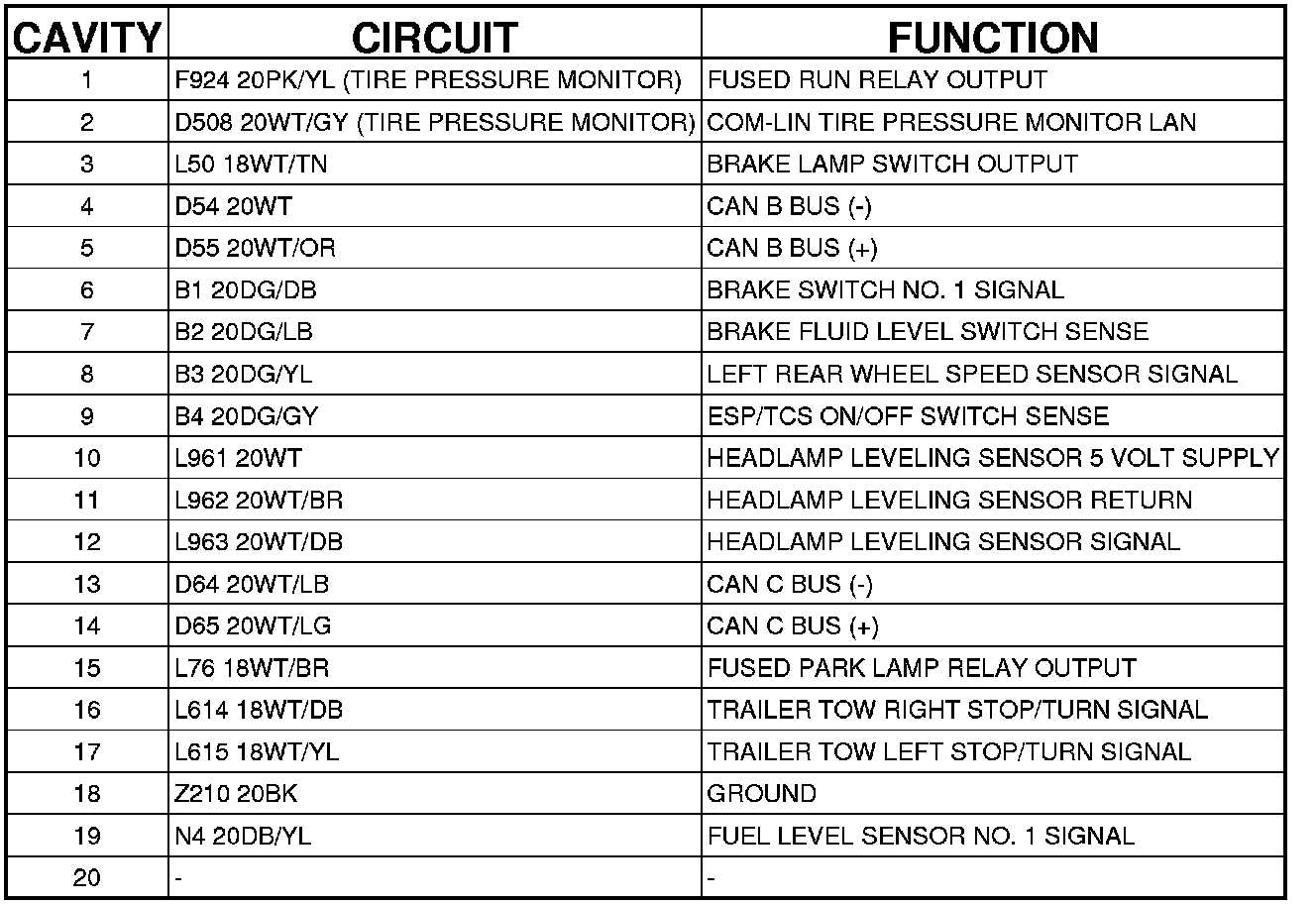

C106 (EXCEPT EXPORT) - (HEADLAMP AND DASH SIDE) 20 WAY
