C105 (Except Export) (Body) 16 Way

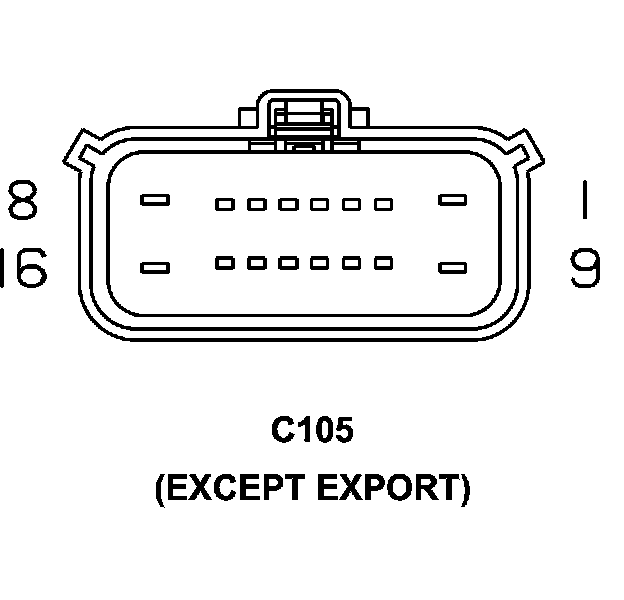

Connector (EXCEPT EXPORT) - (BODY) 16 WAY

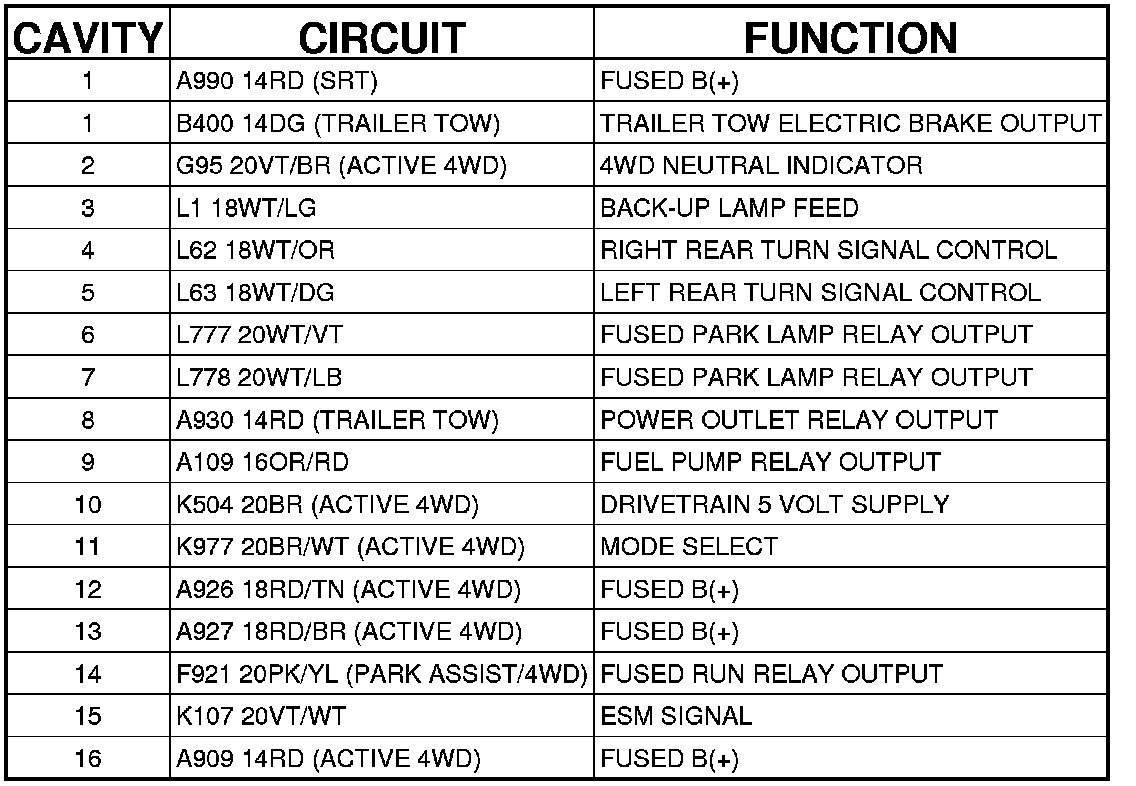

C105 (EXCEPT EXPORT) - (BODY) 16 WAY
