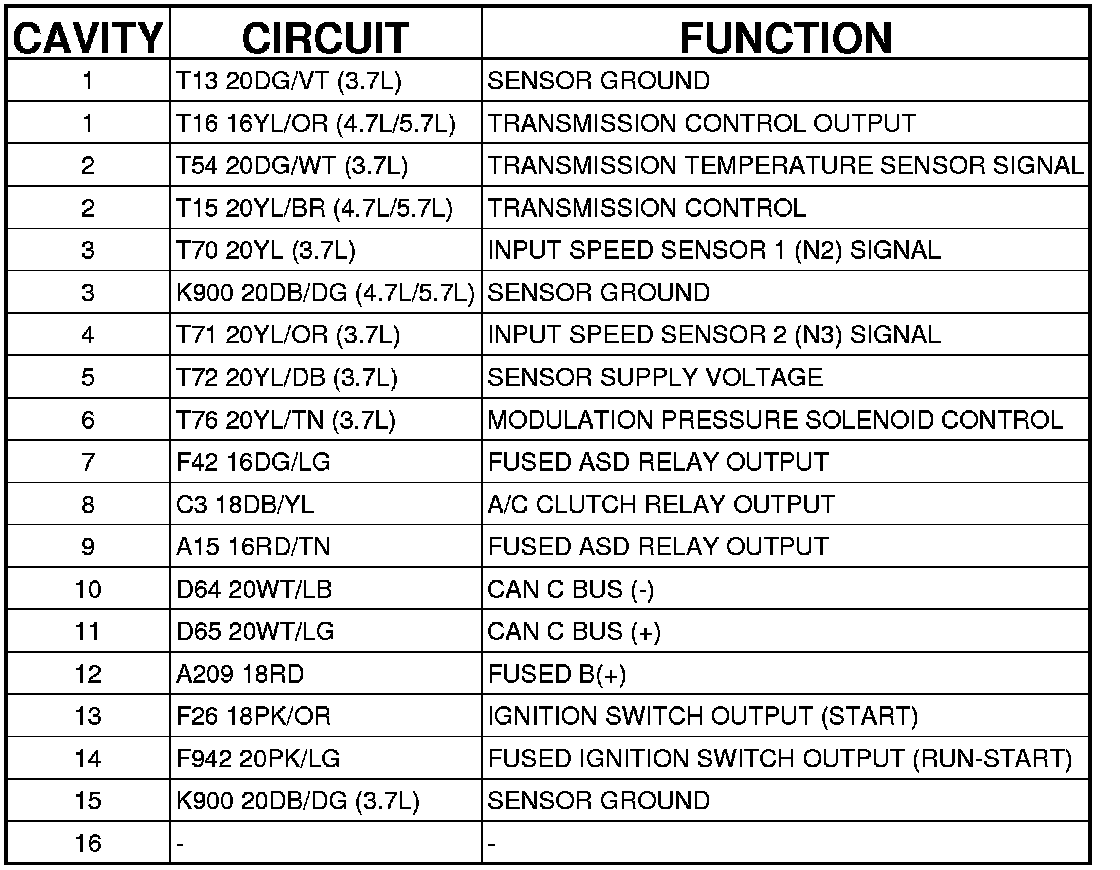

C104 (Headlamp And Dash Side) 16 Way






Connector (GAS) - (HEADLAMP AND DASH SIDE) 16 WAY




C104 (GAS) - (HEADLAMP AND DASH SIDE) 16 WAY
