Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C100 - C199 >> C104 (Engine Side) 16 Way

C104 (Engine Side) 16 Way

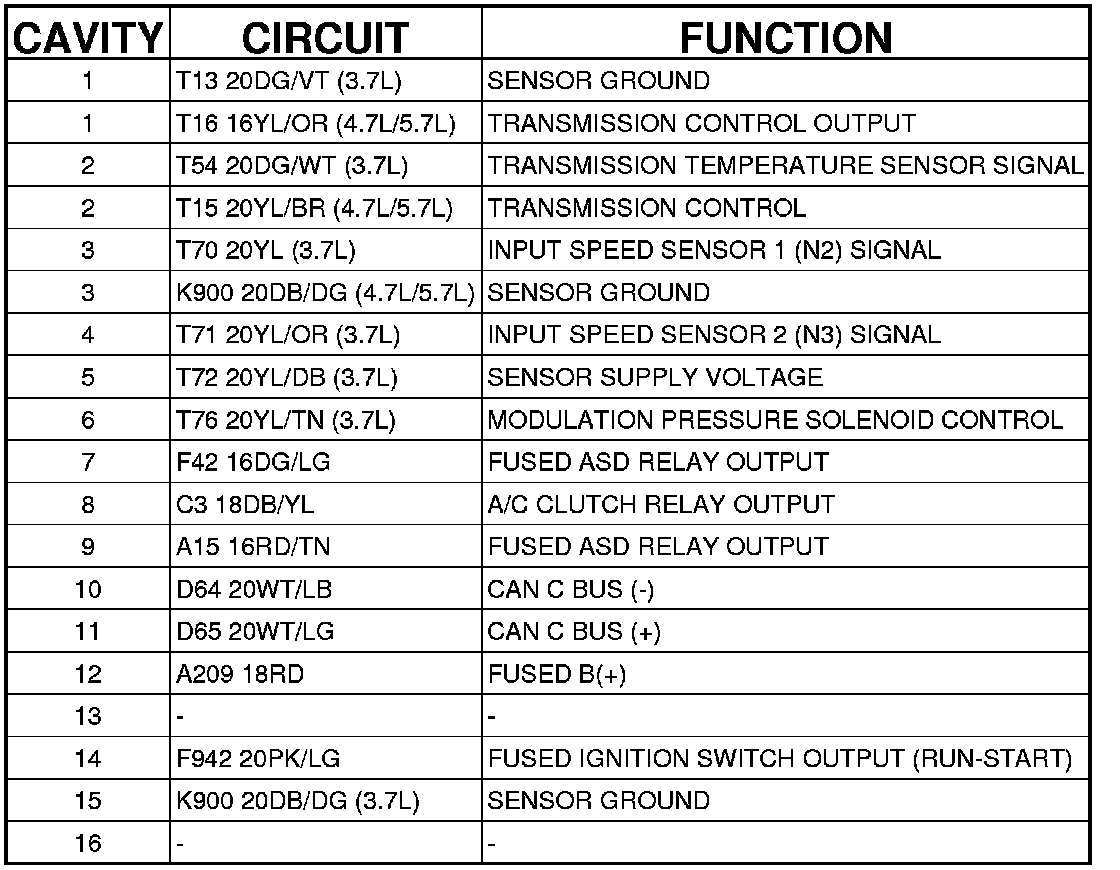

Connector (GAS) - (ENGINE SIDE) 16 WAY

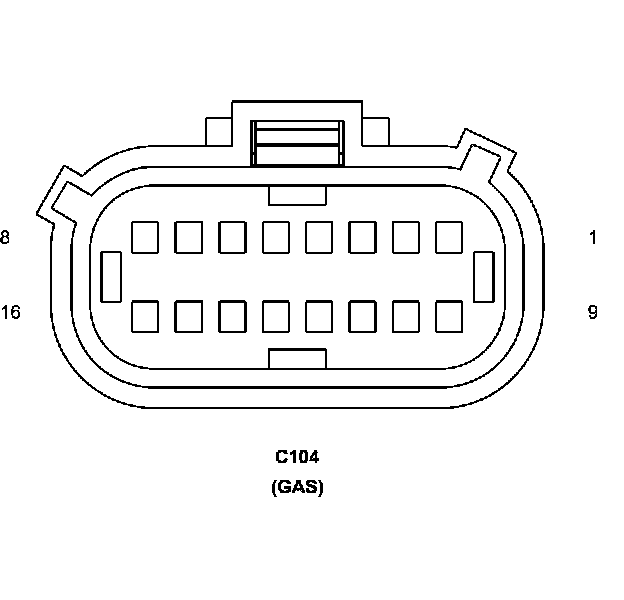

C104 (GAS) - (ENGINE SIDE) 16 WAY
