Brake Lamp
>>
Brake Lamp Relay
Brake Lamp Relay

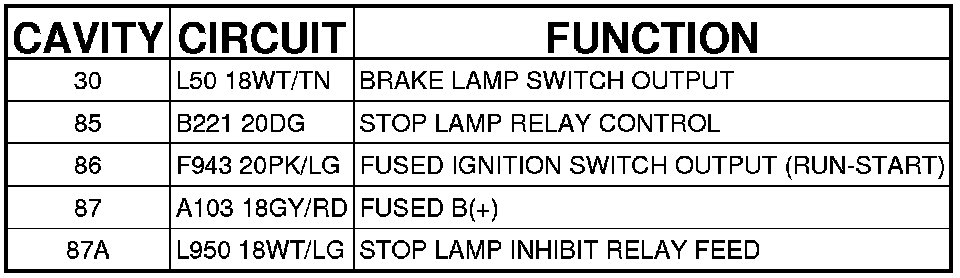

Connector - (IN JB) 5 WAY

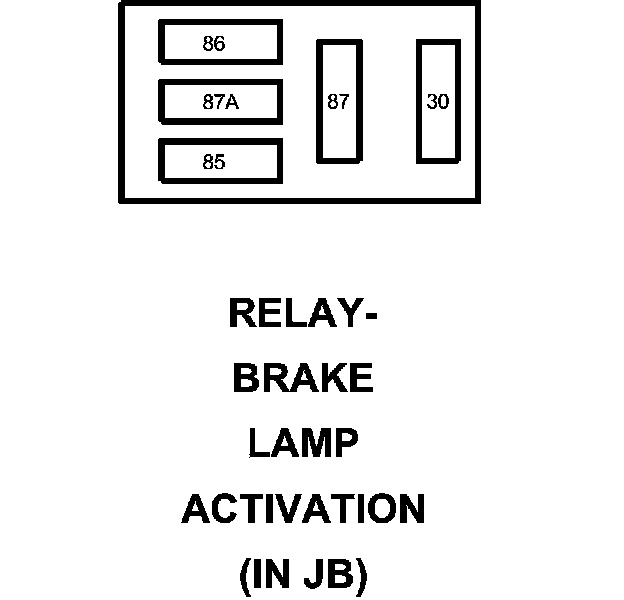

RELAY-BRAKE LAMP ACTIVATION - (IN JB) 5 WAY
