Rear Blower Motor Resistor (Rear HVAC) 5 Way

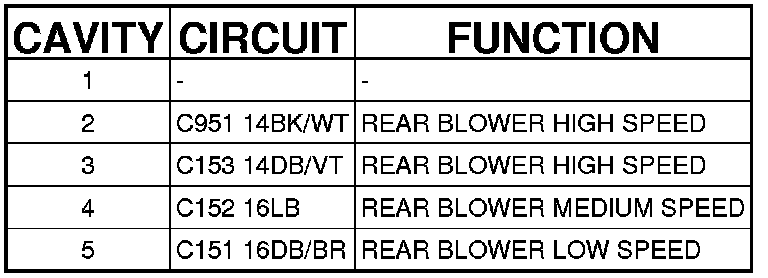

Connector - (REAR HVAC) 5 WAY

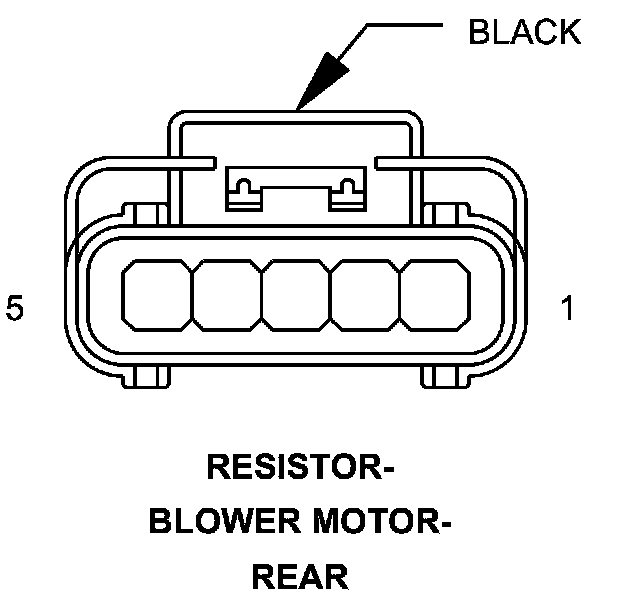

RESISTOR-BLOWER MOTOR-REAR - (REAR HVAC) 5 WAY
