Front Blower Motor Resistor (MTC) (HVAC) 4 Way

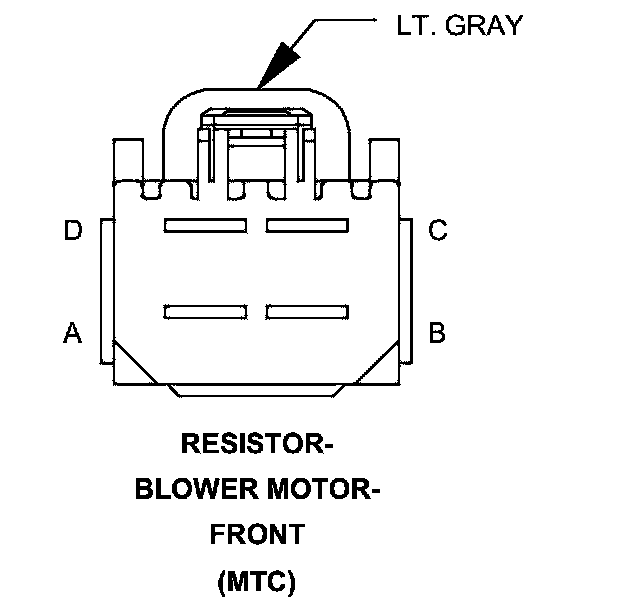

Connector (MTC) - (HVAC) 4 WAY

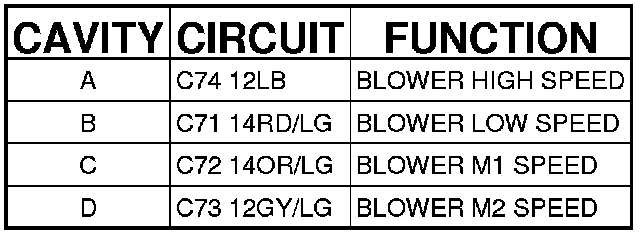

RESISTOR-BLOWER MOTOR-FRONT (MTC) - (HVAC) 4 WAY
