Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Blower Motor Relay >> Front Blower Motor Relay (In PDC)

Front Blower Motor Relay (In PDC)

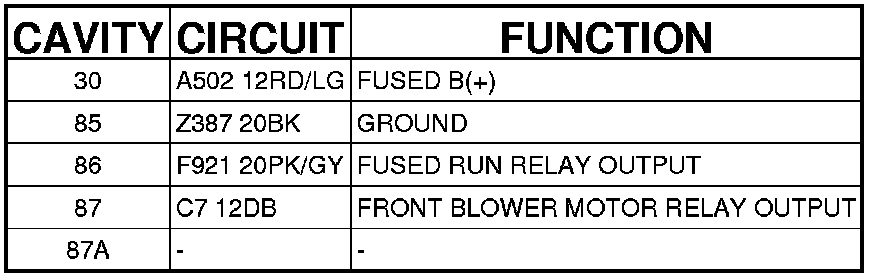

Connector - (IN PDC)

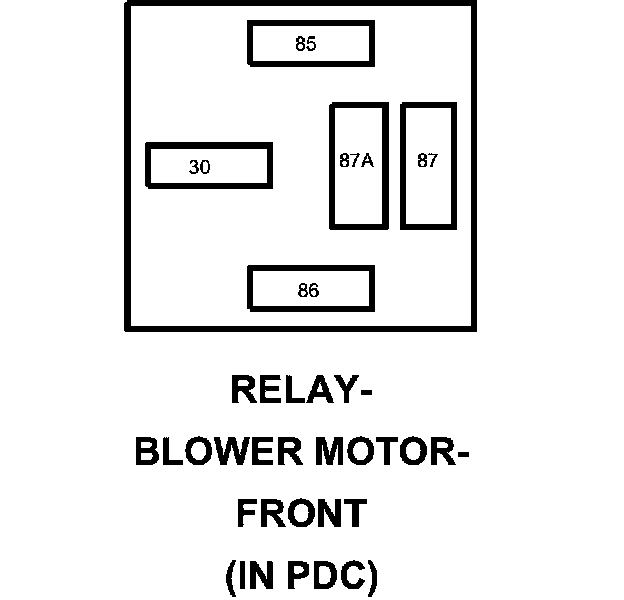

RELAY-BLOWER MOTOR-FRONT - (IN PDC)
