Media Port (UCI) (Instrument Panel) 16 Way

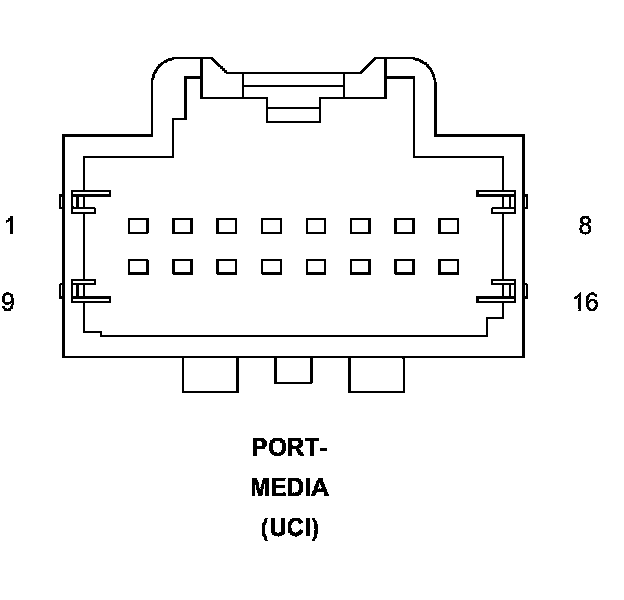

Connector (UCI) - (INSTRUMENT PANEL) 16 WAY

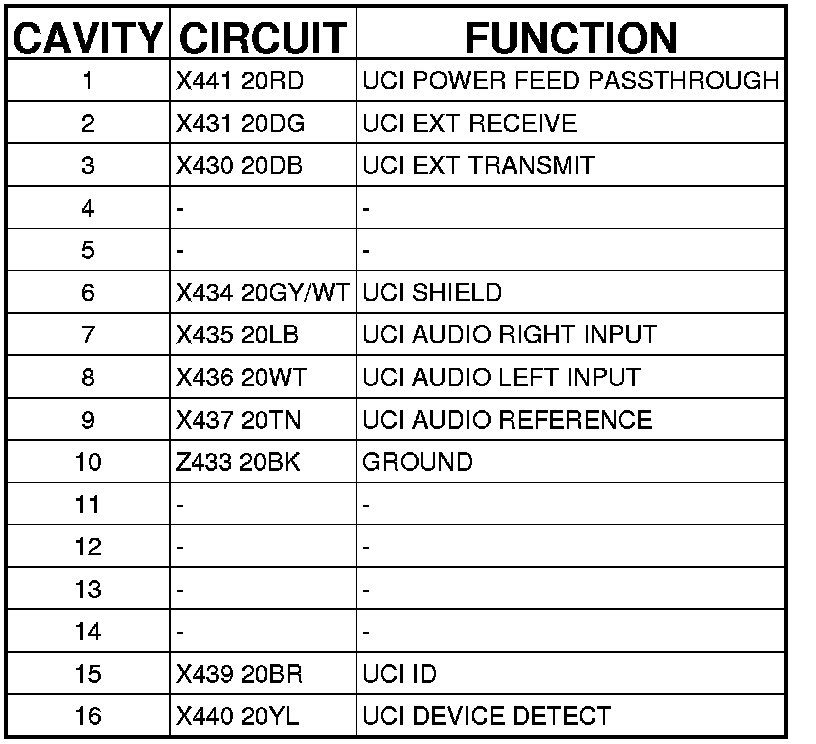

PORT-MEDIA (UCI) - (INSTRUMENT PANEL) 16 WAY
