Auxiliary Audio/Video Port (Body) 8 Way

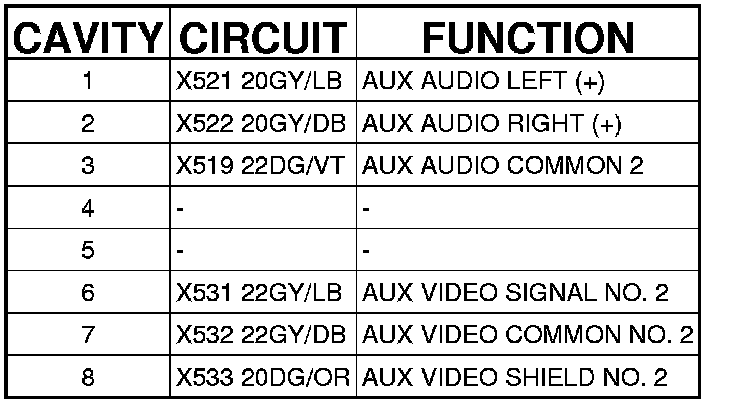

Connector - (BODY) 8 WAY

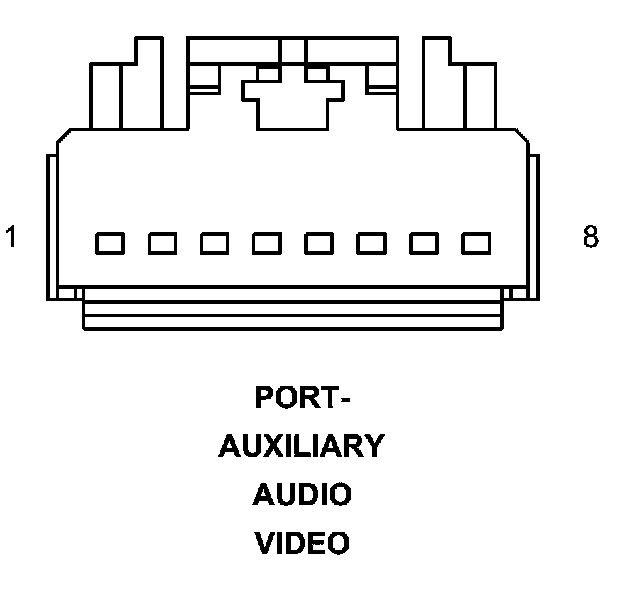

PORT-AUXILIARY AUDIO VIDEO - (BODY) 8 WAY
