Intrusion Sensor Transmitter (VTSS) (Overhead) 3 Way

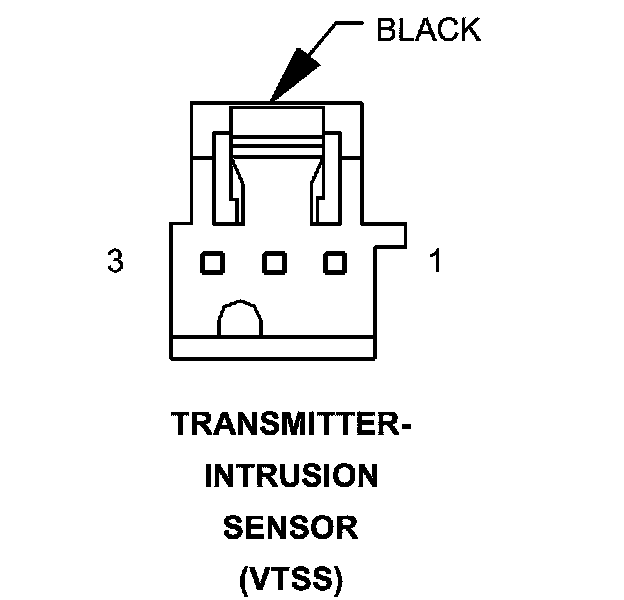

Connector (VTSS) - (OVERHEAD) 3 WAY

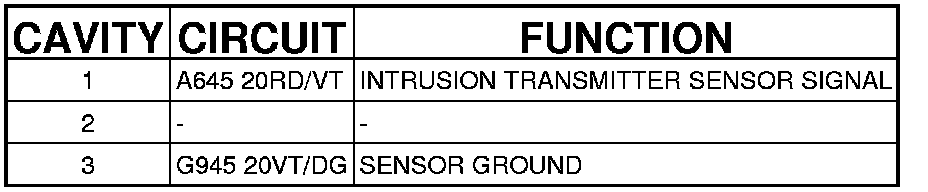

TRANSMITTER-INTRUSION SENSOR (VTSS) - (OVERHEAD) 3 WAY
