Jeep Truck
>>
2009
>>
Commander 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door Actuator / Motor, HVAC
>>
Right Blend Door Actuator (ATC HVAC) 6 Way
Right Blend Door Actuator (ATC HVAC) 6 Way

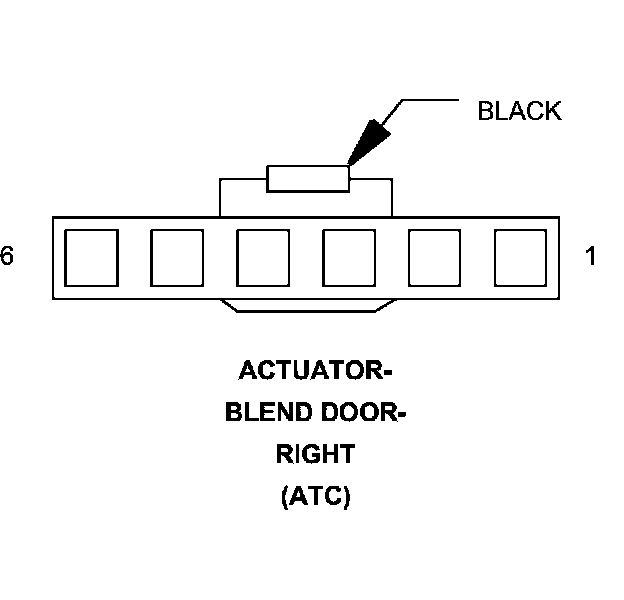

Connector (ATC) - (HVAC) 6 WAY

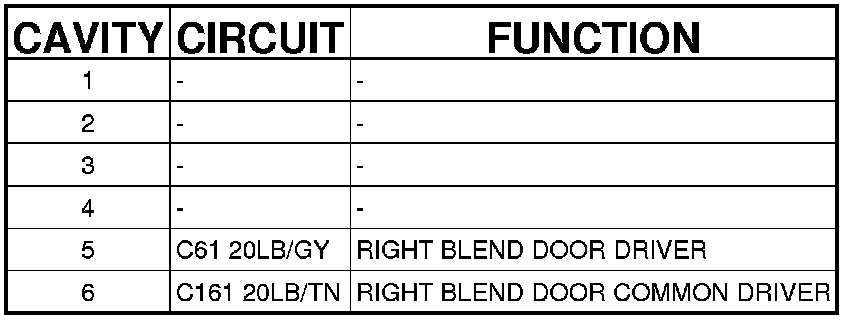

ACTUATOR-BLEND DOOR-RIGHT (ATC) - (HVAC) 6 WAY
