Front Mode Door Actuator (HVAC) 6 Way

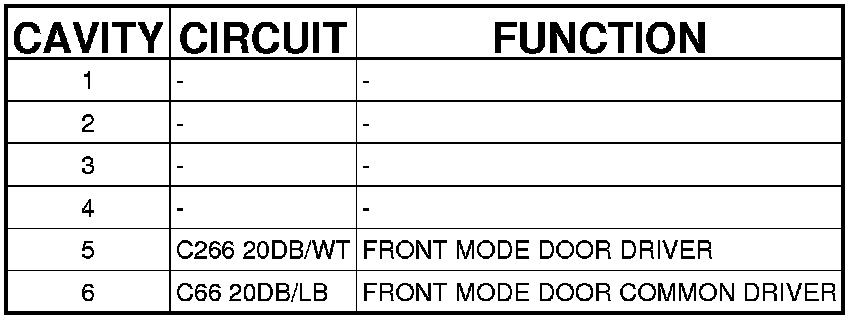

Connector - (HVAC) 6 WAY

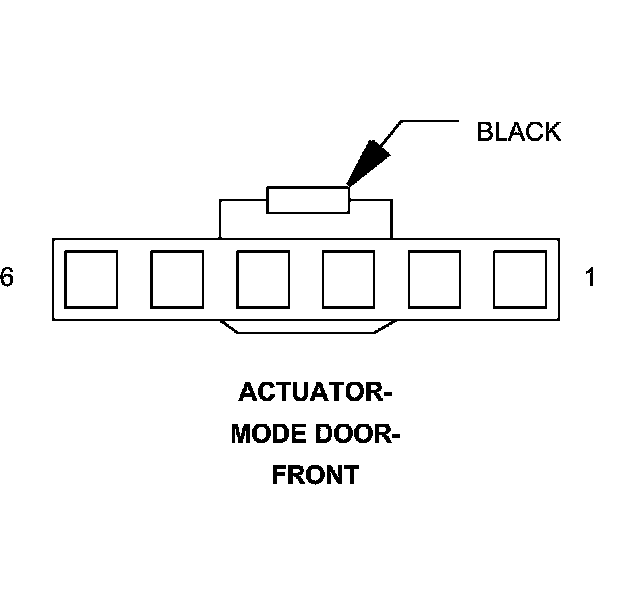

ACTUATOR-MODE DOOR-FRONT - (HVAC) 6 WAY
