Occupant Restraint Controller Module C2 (Instrument Panel) 32 Way

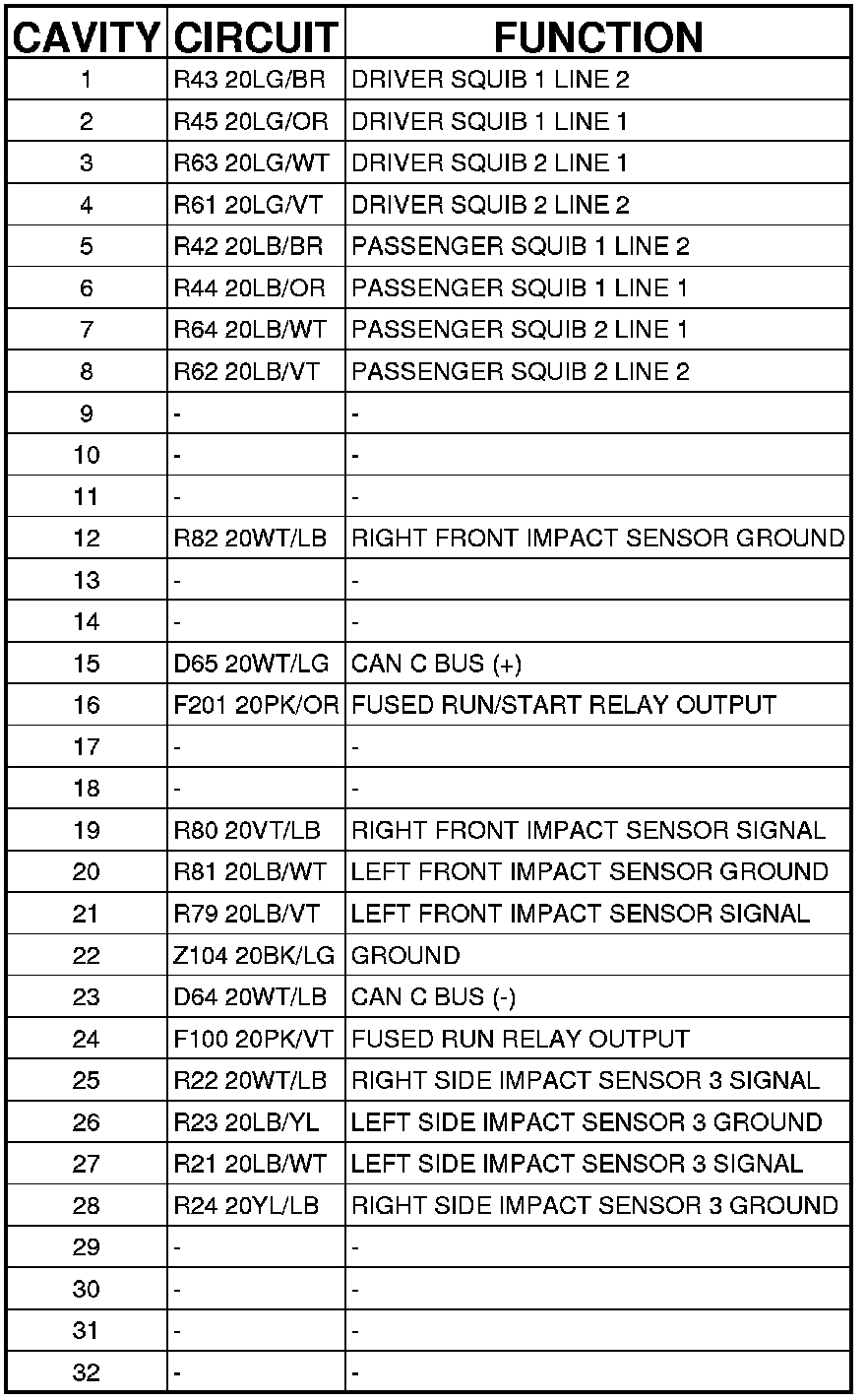

Connector C2 - (INSTRUMENT PANEL) 32 WAY

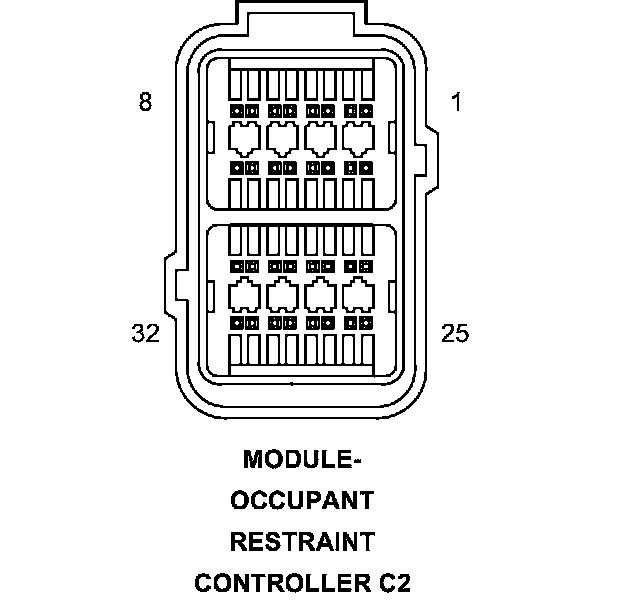

MODULE-OCCUPANT RESTRAINT CONTROLLER - (INSTRUMENT PANEL) 32 WAY
