Air Bag Control Module
>>
Occupant Restraint Controller Module C1 (Body) 32 Way
Occupant Restraint Controller Module C1 (Body) 32 Way

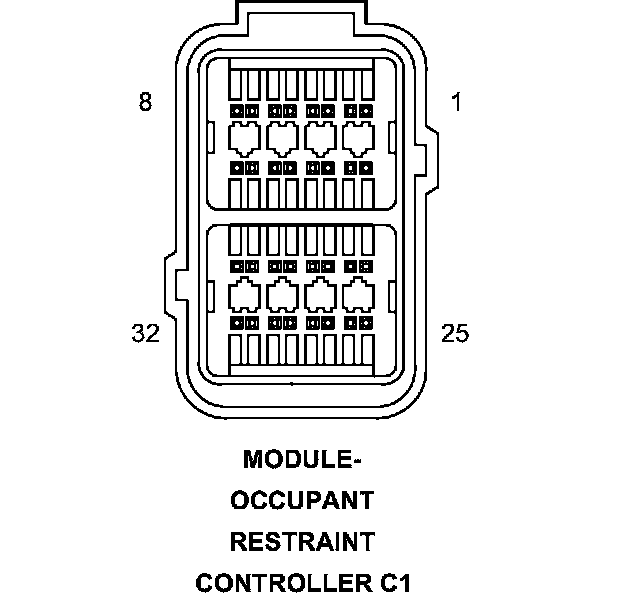

Connector C1 - (BODY) 32 WAY

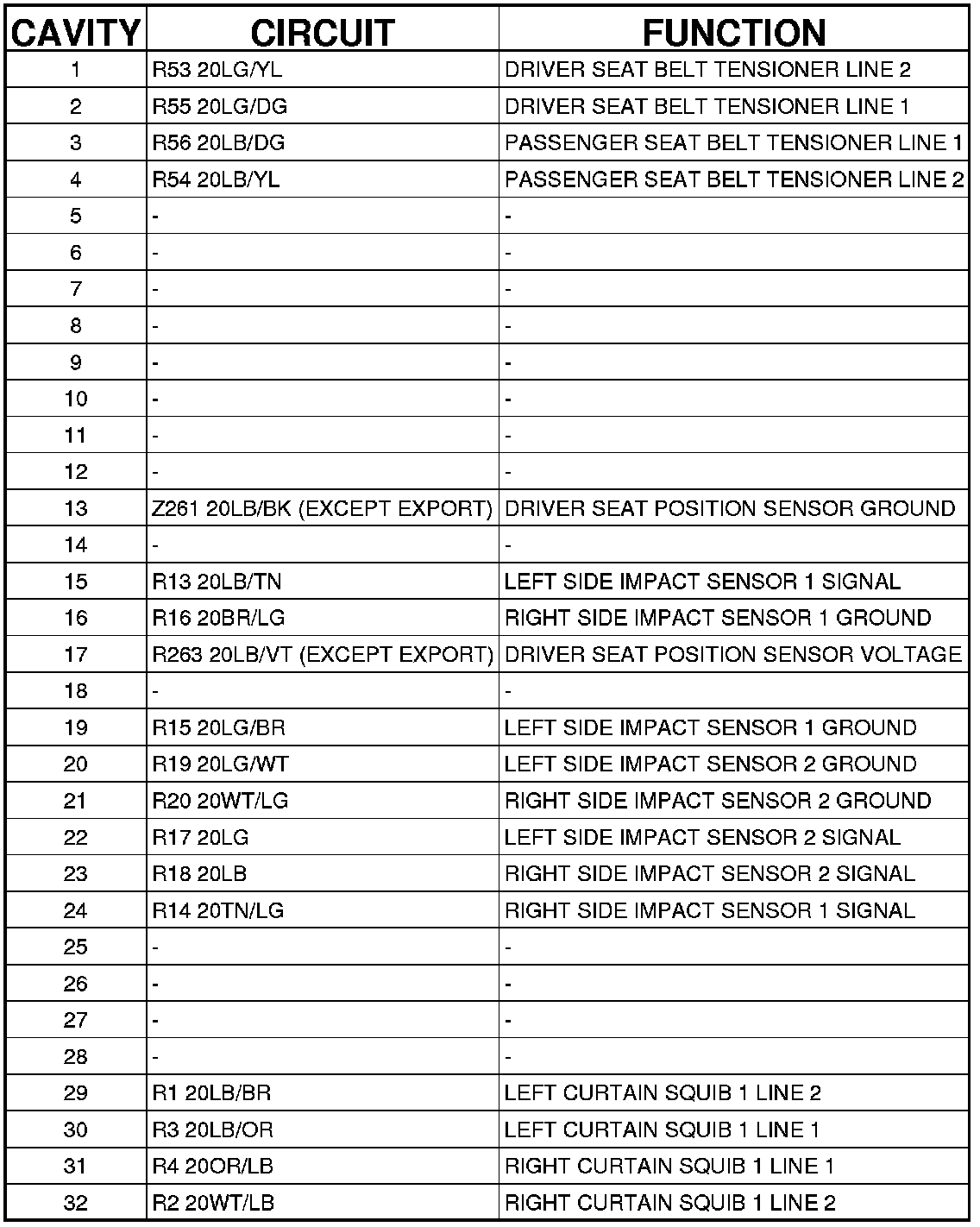

MODULE-OCCUPANT RESTRAINT CONTROLLER - (BODY) 32 WAY
