Power Brake Booster - Description

DESCRIPTION

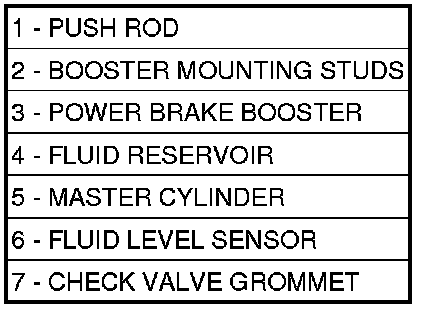

The booster assembly consists of a housing divided into separate chambers by two internal diaphragms. The outer edge of each diaphragm is attached to the booster housing (3).

Two push rods are used in the booster. The primary push rod (1) connects the booster to the brake pedal. The secondary push rod connects the booster to the master cylinder to stroke the cylinder pistons.
