Rear Cable

REAR










1. Remove the rear seat bottom Seat - Removal.










2. Disconnect the (FDCM) final drive control module electrical connectors (1).
3. Remove the (FDCM) module bracket (2) mounting nuts.

4. Remove the rear sill plates.
5. Roll the carpet back to access the rear park brake cables.

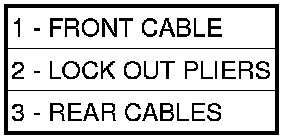

6. Lock-out the park brake cable (1).










7. Disconnect the brake cables from the equalizer (1).










8. Remove the park brake cables (2) thru the floor (1).










9. Raise and support the vehicle.
10. Remove the tire and wheel assembly.

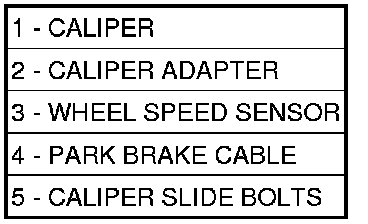

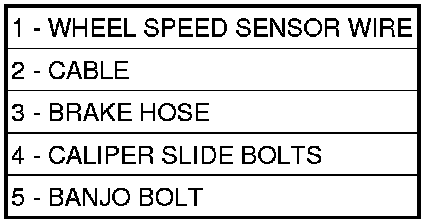

11. Remove the rear caliper (1) Disc Brake Caliper - Removal.










12. Remove the disc brake rotor.










13. Disconnect the park brake cable at the brake actuator lever (2).

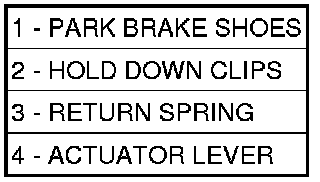

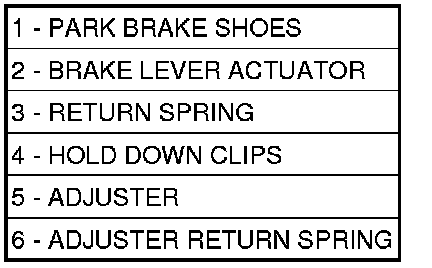

14. Disconnect the rear park brake shoes (1)Removal.










15. Remove the stabilizer bar bushing clamp bolts.
16. Remove the 2 push pins for the park brake cable to the axle.
17. Remove the park brake cable (2) thru the support plate.
18. Remove the cable (2) from the vehicle.
